Topic Closed3D model of Truck
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
aeroashfaq View Drop Down
Newbie
Newbie


Joined: 12.Feb.2014
Location: Saudi Arabia
Using: autocad2012
Status: Offline
Points: 5 		Direct Link To This Post Topic: 3D model of Truck
    Posted: 12.Feb.2014 at 13:06
Actually I Dont know (forgot some steps) how to create 3D model in AutoCAD, can any body help me to create or give me step by step procedure.

Following are the 2D drawings:
Ashfaq
Back to Top
Ganes View Drop Down
Newbie
Newbie


Joined: 26.Mar.2014
Location: United Kingdom
Using: auto CAD
Status: Offline
Points: 2 		Direct Link To This Post Posted: 26.Mar.2014 at 00:29
HI,im new about CAD,im building some kind of machine and now its ready to febricate,is here anyone can help to convert my hand drawings to the 3d auto cad for cash.please let me know if anyone intreasted.thanks.my email is - modelmaker29@gmail.com
Back to Top
philippe JOSEPH View Drop Down
Senior Member
Senior Member


Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1493 		Direct Link To This Post Posted: 26.Mar.2014 at 07:35
Aeroashfaq, do you have the 3 images in a DWG file ?
Then you could EXTRUDE some REGIONS.
If not, try to download the free soft ANYDWG to convert a good image file into a DWG.
With that 2D views you could try and work some 3D volumes.

To do 3D work with AutoCAD you have to create closed areas ( with REGION for example ) and :
EXTRUDE or REVOLUTION them, then UNION or SUBTRACT them etc...
Try to find some documentation about 3D for you not being stoped right in the beginning.
Tell us about your expereiences, tests, upload your drawings so that we can critizise them etc...

I have a truck in 3D and I will upload it in the Cad Blocks library right here in the site.

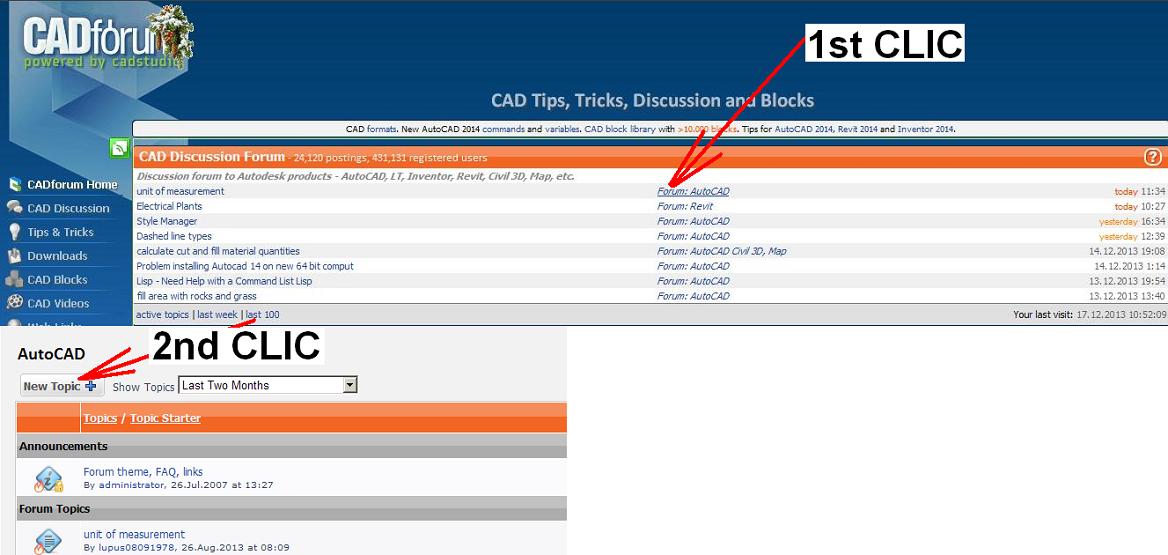

GANES, YOU CAN POST A "NEW TOPIC" ONLY FOR YOU, SEE IMAGE HERE :




Edited by philippe JOSEPH - 26.Mar.2014 at 07:39
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 26.Mar.2014 at 10:31
aero: You have a lot of work ahead of you trying to do that in plain AutoCAD not too mention that although you have many of the overall dimensions you do not have detailed/full dimensions on many aspects of the truck.  You could "rough" it out by drawing the profiles of all three views then extruding them followed by using the Interfere command to see where they overlap.  That is still going to be a lot of work.

I know of one possible source for 2D views (in DWG file format) of many trucks which include top, front, rear and side views.

Question: Are you going to attempt this as a 3D solid or use surfaces?


Edited by John Connor - 26.Mar.2014 at 13:42
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 26.Mar.2014 at 10:35
Originally posted by Ganes Ganes wrote:

HI,im new about CAD,im building some kind of machine and now its ready to febricate,is here anyone can help to convert my hand drawings to the 3d auto cad for cash.please let me know if anyone intreasted.thanks.my email is - modelmaker29@gmail.com


Ganes: It is considered impolite to hijack a thread started by someone else just to ask for help with your own unrelated problem.  In the future start a new post.

Do you have detailed, dimensioned views of your machine or are they rough sketches?  The more information you already have down on paper the faster someone can work to create the machine in 3D.  If they have to stop every five to ten minutes to ask a question that increases the amount of time spent which will increase the price you have to pay.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
