 Topic: Text in 2D on 3D perspective View
Posted: 20.May.2014 at 23:07 |
|
I have a drawing that I want to print in 3d perspective view, but I need the text to show up in 2d. I want to do all of this in model space. Can someone perhaps advise how I should go about changing the text to a 2D (plan) view on my 3d perspective (in model space)?
Thanks
|
 |
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 21.May.2014 at 00:08 |
|
Switch to a top view and place your 2D text. Just make sure it has an elevation of zero.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
teslaoutsourcing
Newbie
Joined: 26.Apr.2014
Location: India
Using: AutoCAD2014, Revit, 3Ds MAX, ArchiCAD
Status: Offline
Points: 15
|
Posted: 21.May.2014 at 15:05 |

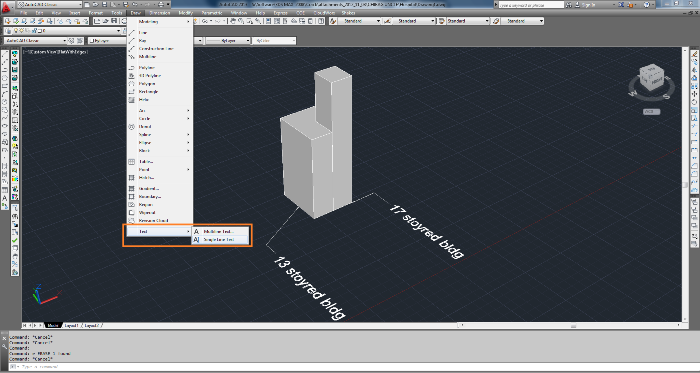

Click on ‘Draw’, in drop down menu select ‘Text’ option (last
option of the drop down menu). Now you can select ‘Multiline Text’ as well as Single
Line Text. You can easily create 2D annotations.
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 21.May.2014 at 15:21 |
|
He asked how to get the text in a top down view in a 3D drawing not how to actually use TEXT or MTEXT.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1428
|
Posted: 21.May.2014 at 15:45 |
John and RIPTIPE6, I think RIPTIDE wanted a 3D viewpoint with 2D viewpoint texts; then I think he could set an UCS View and launch a text to be seen in "2D".
RIPTIDE OK ?
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 21.May.2014 at 16:24 |
|
Yes, your UCS should be in the correct orientation to avoid unintended results. It stands to reason anyone creating a 3D drawing would/should know this.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
teslaoutsourcing
Newbie
Joined: 26.Apr.2014
Location: India
Using: AutoCAD2014, Revit, 3Ds MAX, ArchiCAD
Status: Offline
Points: 15
|
Posted: 22.May.2014 at 14:05 |
|
Hi John, as per my understanding RIPTIDE6 in his query mentioned 3D perspective view which is not necessarily top down view.
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 22.May.2014 at 15:48 |
|
And your instructions were for creating 2D annotation....period. You did not mention anything about 3D or UCS or perspective so I don't see what the connection was.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 22.May.2014 at 18:08 |
 RIPTIDE6 wrote:
I have a drawing that I want to print in 3d perspective view, but I need the text to show up in 2d. I want to do all of this in model space. Can someone perhaps advise how I should go about changing the text to a 2D (plan) view on my 3d perspective (in model space)?
Thanks
|

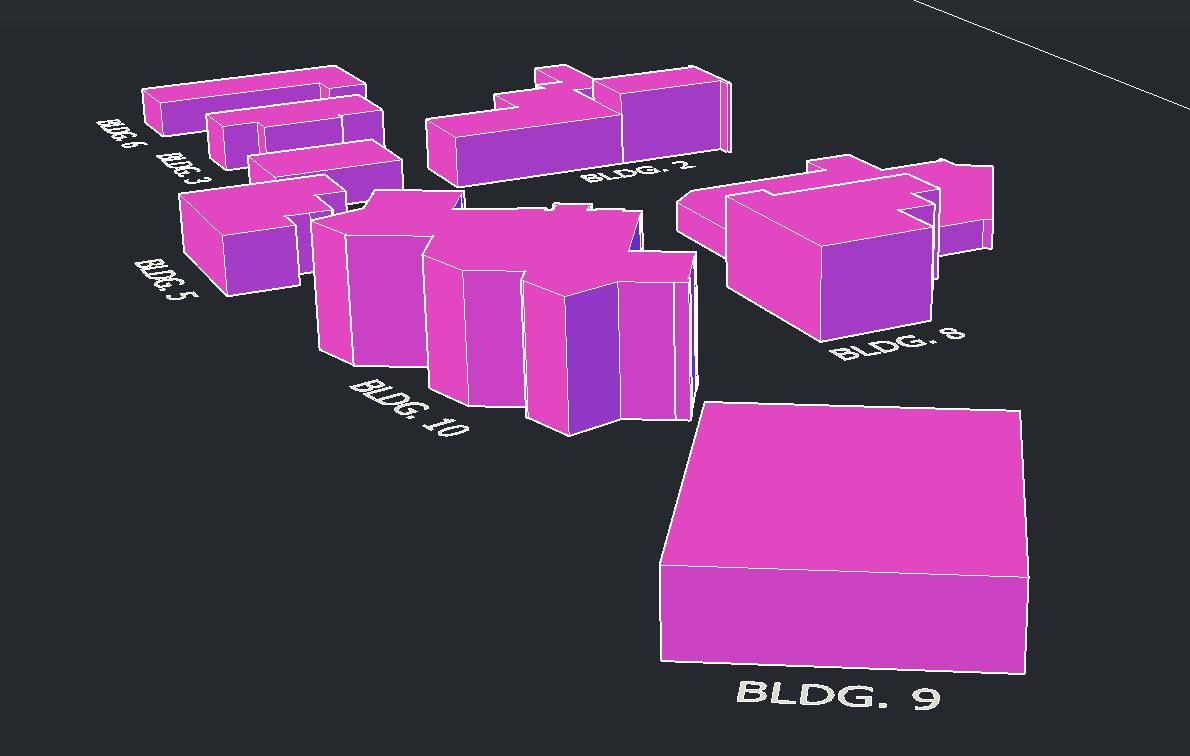

You can still enter your text while in a 3D isometric view with the sysvar PERSPECTIVE set to "1" (on). Just make sure your UCS is correctly oriented so when you put your text in it is flat and not vertical.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 22.May.2014 at 18:18 |
Edited by John Connor - 22.May.2014 at 18:24
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
