Ardyman
Newbie
Joined: 16.Jun.2014 Location: Indonesia Using: Autocad2009, Autocad2012 Status: Offline Points: 2 |
Topic: How to join 2 lines without change the length?Posted: 23.Jun.2014 at 11:46 |
|
|
|
Pls Help n thanks before
|
|
![]() |
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1508 |
Posted: 23.Jun.2014 at 12:54 |
|
uploads/175428/JOIN_THE_LINES_01.dwg
Ardyman, this is not difficult, it's basic geometry.
Tell us if it's a homework or ...
|
|
![]() |
|
Kent Cooper
Senior Member
Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 686 |
Posted: 23.Jun.2014 at 15:49 |
|
Brute-force method:
Draw a Circle whose center is at the upper right and whose radius is defined by point A, and another whose center is at the lower left and whose radius is defined by point B. Select the Polyline and drag the grips at points A and B to the nearer intersection of those two Circles. Erase the Circles.
If you want the resulting Polyline to be closed (in entity-data terms, not just visually), use Pedit and its Edit Vertex option to Break off one of the end segments, move the other end only to that intersection of Circles, and then have the Polyline closed in the Properties box, which will put back the segment you Broke off but adjusted appropriately.
It could probably also be done with an AutoLISP Routine that would require only selecting the Polyline, if the same kind of situation arises often enough.
|
|
![]() |
|
dilibere
Newbie
Joined: 19.Jun.2014 Location: South Africa Using: AutoCAD2012 Status: Offline Points: 3 |
Posted: 24.Jun.2014 at 16:23 |
|
use the move command
|
|
![]() |
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 24.Jun.2014 at 18:01 |
That wouldn't work in this case. Moving either line would mean the opposite end would no longer be in the proper position. Edited by John Connor - 24.Jun.2014 at 19:25 |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
![]() |
|
Kent Cooper
Senior Member
Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 686 |
Posted: 26.Jun.2014 at 16:21 |
|
[... I should have said select the Lines that have A and B on their ends, if that's what they are, rather than the Polyline ....]
|
|
![]() |
|
agguloy
Groupie
Joined: 25.Jun.2014 Location: Philippines Using: 2015 Status: Offline Points: 21 |
Posted: 27.Jun.2014 at 01:47 |
|
hello guys,
its not so easy for me to do so..connecting those two ends without changing its dimension but all i have to do is to rotate the two lines using their axis. rotating used reference, repeating the command until they met. tnx..
Edited by agguloy - 27.Jun.2014 at 03:38 |
|
|
jaRIZ_raisa
|
|
![]() |
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1508 |
Posted: 27.Jun.2014 at 08:12 |
|

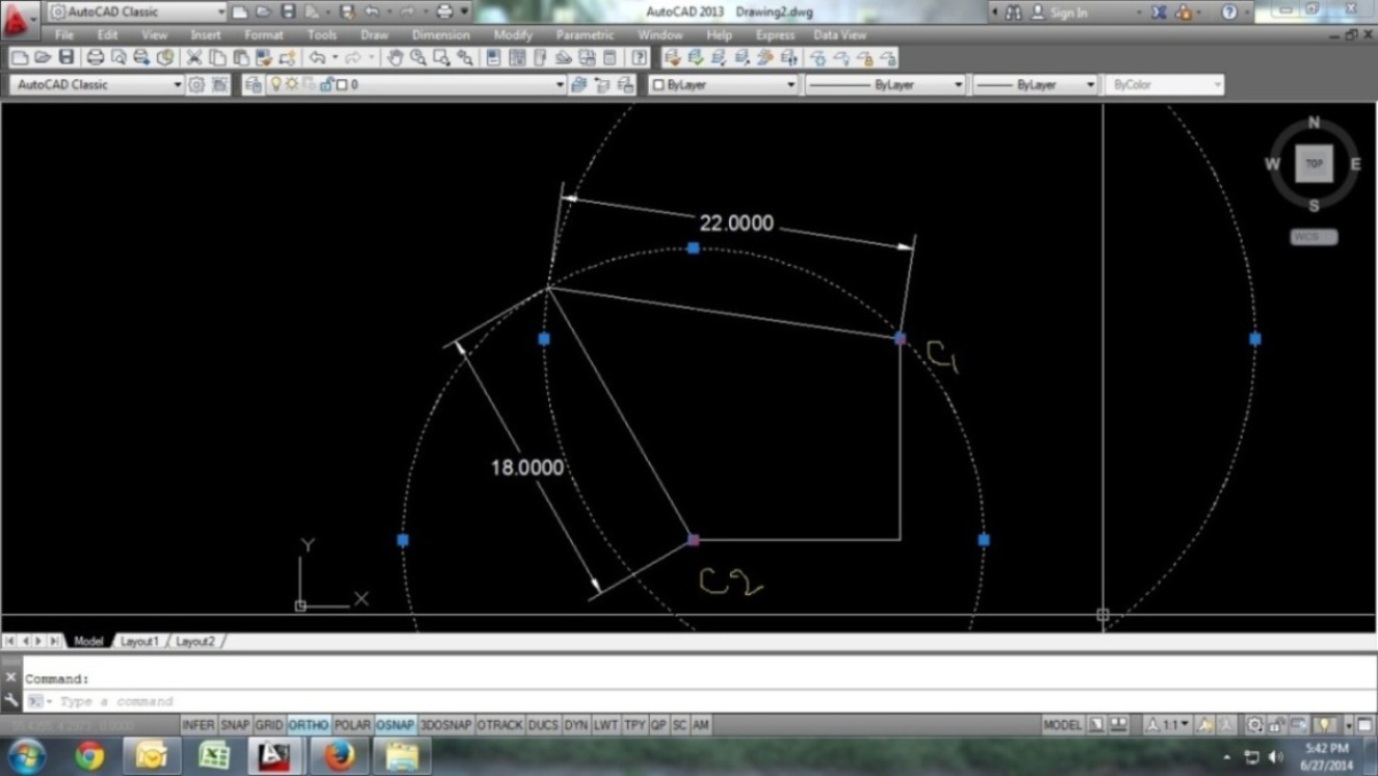

Hello agguloy, you have AutoCAD 2012 full so that you can use the ALIGN command for this with the help of the circles drawn in my file loaded previously : JOIN_THE_LINES_01.dwg
|
|
![]() |
|
teslaoutsourcing
Newbie
Joined: 26.Apr.2014 Location: India Using: AutoCAD2014, Revit, 3Ds MAX, ArchiCAD Status: Offline Points: 15 |
Posted: 27.Jun.2014 at 15:20 |
|
Hi Kent Cooper, I agree your reply.
|
|
![]() |
|
