Topic: tile hatch pattern with recessed button (papo)Posted: 24.Jun.2014 at 09:00 |
|

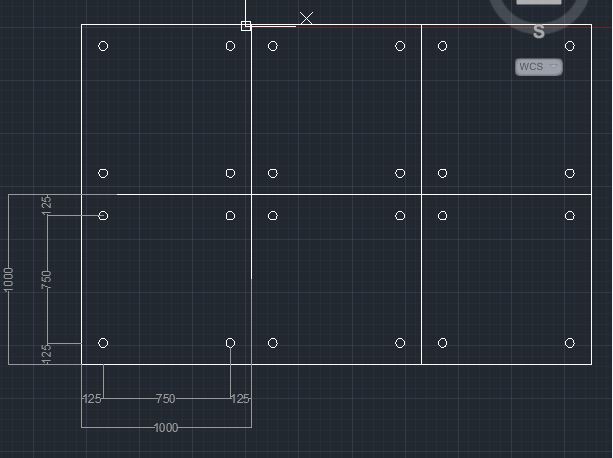

hi, please help me to do this kind of hatch pattern. this is a casted tile type concrete wall with recessed buttons on 4 side of the square.
is this hatch pattern possible? thanks papo |
|
![]() |
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1508 |
Posted: 24.Jun.2014 at 09:14 |
|
Hello arch_papo, why don't you use the blocks technology to make a "standard" component that you could name and give a good insertion point for you to use in all your drawings.
If you use a lot of your blocks you will have to consider so distance between them for a good assembly.
To be continued...
|
|
![]() |
|
arch_papo
Newbie
Joined: 03.Feb.2010 Status: Offline Points: 3 |
Posted: 24.Jun.2014 at 09:51 |
|
Hi Philippe,
I appreciate your reply, thank so much. Sorry if i had a lack information on my query. i will use this on revit as a model pattern or fill pattern for walls. Regards, |
|
![]() |
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 24.Jun.2014 at 11:24 |
|
Create a block and use the Array command to set it out. Or.....
...try using the SuperHatch command found in Express Tools. |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
![]() |
|
hugha
Newbie
Joined: 24.Jun.2014 Location: Australia Using: Revit 2015, AutoCAD2015 Status: Offline Points: 3 |
Posted: 25.Jun.2014 at 04:12 |
|
uploads/481973/CASTTILEWITHBUTTONS2014.zipTry this Revit Model pattern I built just now with HatchKit 2014, available in public beta release from http://www.hatchkit.com.au/hk2014betaofferform.php
|
|
|
hth,
Hugh Adamson www.hatchkit.com.au |
|
![]() |
|
Kent Cooper
Senior Member
Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 686 |
Posted: 25.Jun.2014 at 16:43 |
|
That could certainly be done as a Hatch pattern, if you don't mind the buttons not being true circles, but segmented approximations. But if you always do it in full panels, I would agree with the suggestion to use a Block [in which the buttons can be true Circles, and they could also be on a different Layer or otherwise in a different color/linetype/lineweight/etc. than the panel outlines], and you can use the MINSERT command to put a whole area of them in at once, like a rectangular Array but as one drawing entity.
|
|
![]() |
|
