Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Topic: Lofting problem
    Posted: 06.Sep.2014 at 16:36
I prepared closed profiles for lofting, but I encountered a problem. Can somebody tell what could be the problem?

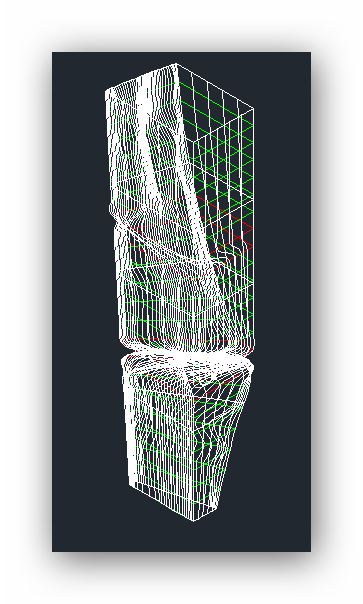

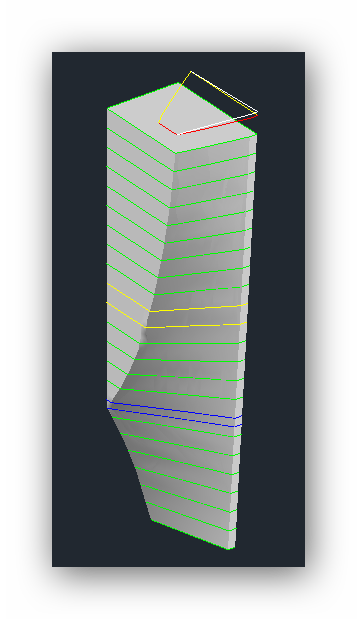

Here are some picture illustrating the problem:

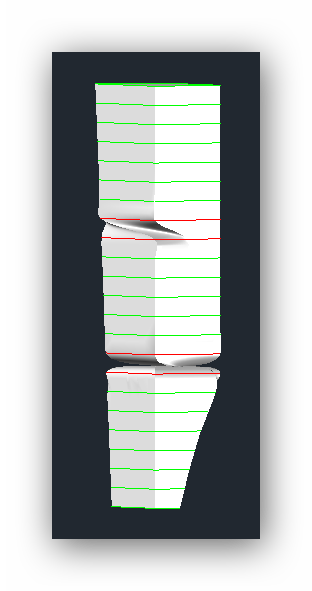

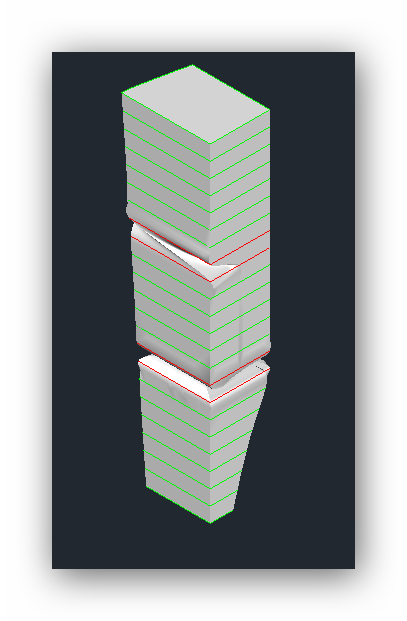

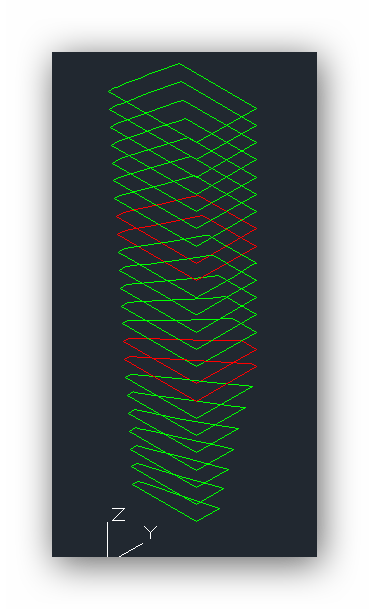

Profiles in red denote the place of irregularity in the lofted 3D solid.



Thank you for any help.

Kind regards, Hrvoje
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 06.Sep.2014 at 18:16
A copy of the drawing would be needed to troubleshoot the problem.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 06.Sep.2014 at 19:57
Thank you John for your answer. Here is the file with the drawing:

uploads/497931/VL_za_krmenu_protustatvu_-_2.dwg

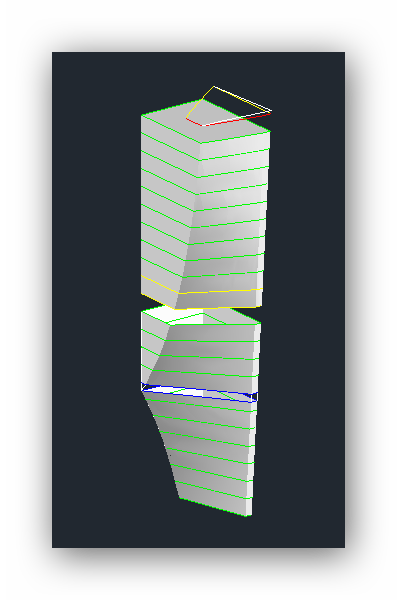

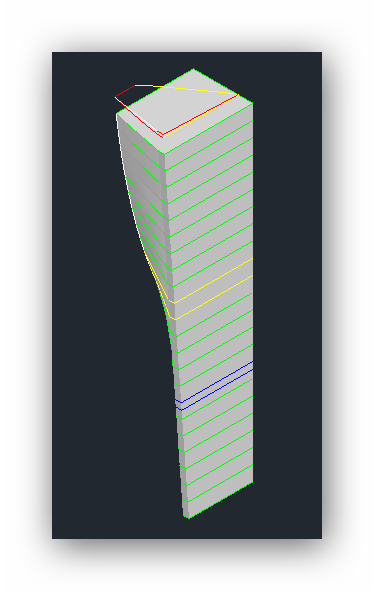

In the meantime I found out that the closed profiles are not of the same type. There are polylines (green), splines (yellow) and 3D polylines (blue).

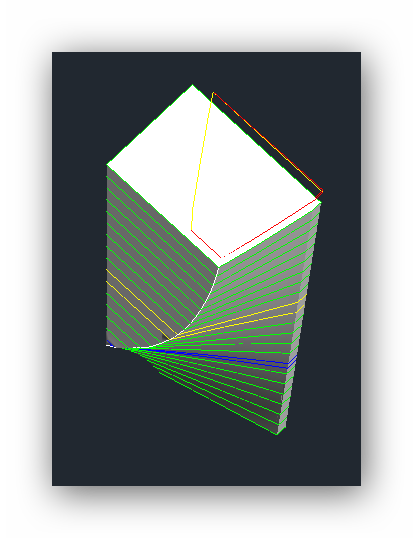

In the next step I added one profile on the place where the solid has discontinuity in the form. The first blue line, lower. Also, I started to loft from the top (!?) and the form was better.

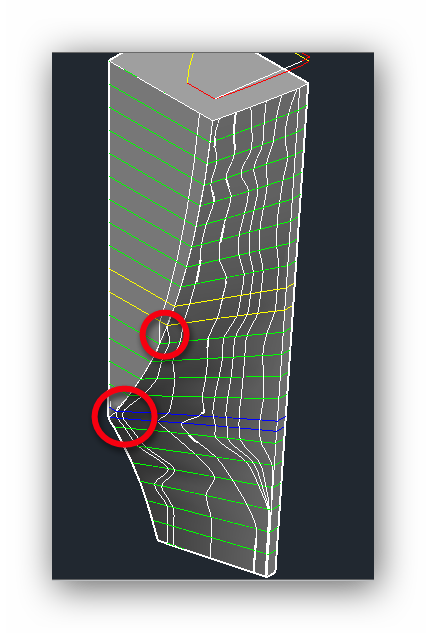

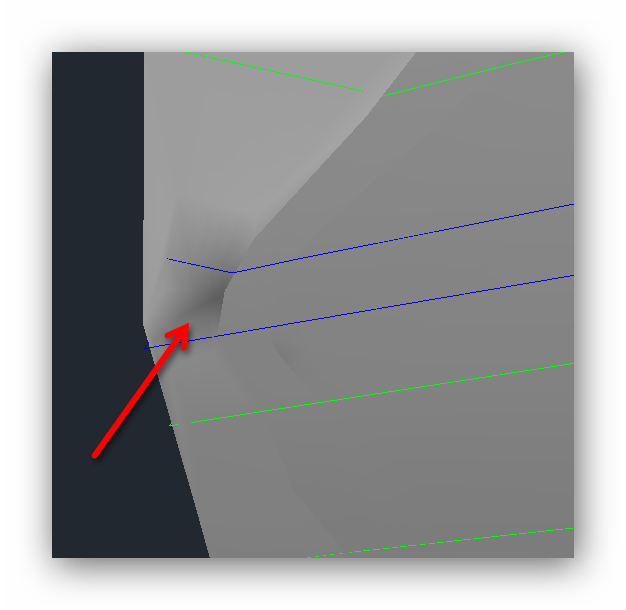

On two places I have the irregularity in the surface. I don't know yet, how to solve this problem.
Kind regards, Hrvoje
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 06.Sep.2014 at 21:02

If I avoid critical part of the solid it looks fine. Smile
Now must find the way how to close the gaps.
Kind regards, Hrvoje
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 06.Sep.2014 at 22:18
I guess you aren't going to upload a copy of the drawing.  OK.  Good luck.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 06.Sep.2014 at 22:19
If I use each third profile solid looks much better. Also the geometry is not accurate as it can be.
Kind regards, Hrvoje
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 06.Sep.2014 at 22:21
Originally posted by John Connor John Connor wrote:

I guess you aren't going to upload a copy of the drawing.  OK.  Good luck.
Yes, I uploaded the copy of the drawing in one of the previous posts (at 20:57). I will check if I can open it.

P.S. I checked: it is possible to open the drawing.


Edited by Mali Zeleni - 06.Sep.2014 at 22:26
Kind regards, Hrvoje
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 07.Sep.2014 at 21:43
I refined the geometry and the 3D solid looks better.



I still have two places on the solid which should be put in order.
Is the lofting bad approach for such body? I see that only one surface is not good: all surfaces located in one plane are OK. The flow of lines on curved surface seems to be "drunk".

Here is the copy of the drawing:

uploads/497931/VL_za_krmenu_protustatvu_-_2_-_Copy.dwg

I thank for each answer.




Edited by Mali Zeleni - 07.Sep.2014 at 21:59
Kind regards, Hrvoje
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 08.Sep.2014 at 12:24
Looks like you are getting helped over at CADTutor so there is no need to continue the conversation here.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Mali Zeleni View Drop Down
Newbie
Newbie


Joined: 06.Sep.2014
Location: Croatia
Using: AutoCAD 2014
Status: Offline
Points: 8 		Direct Link To This Post Posted: 08.Sep.2014 at 13:26
Originally posted by John Connor John Connor wrote:

Looks like you are getting helped over at CADTutor so there is no need to continue the conversation here.
Consequently, because I am the member at CADTutor forum, there is no need to be the member of this one. Right?
Kind regards, Hrvoje
Back to Top
