Topic ClosedFlexible Hose Linetype
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
mmaurigi View Drop Down
Groupie
Groupie


Joined: 21.Oct.2012
Location: United States
Using: AutoCAD 2009
Status: Offline
Points: 43 		Direct Link To This Post Topic: Flexible Hose Linetype
    Posted: 29.Oct.2014 at 21:40
I need a linetype for flexible hose that I can use on a Flow Diagram. I don't know how to create one, so if you have one you can share, it would be appreciate it.

Thanks
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 29.Oct.2014 at 22:26
I would recommend you create a symbol rather than a linetype.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 30.Oct.2014 at 15:01

A web search can often be productive, for example:


Here's a site that seems to have a program available for all of that sort of thing:

If those don't do it, can you post an image of what such a linetype should look like, for those of us not in lines of work that need such a thing?




Edited by Kent Cooper - 30.Oct.2014 at 15:08
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 30.Oct.2014 at 15:07

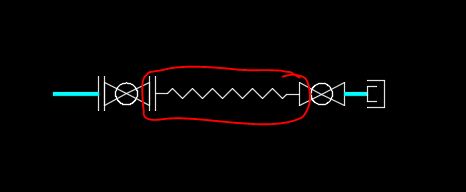

One of a handful of flexible connection symbols we use.  This one happens to be flanged on one end and threaded on the other.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 30.Oct.2014 at 15:11
Originally posted by John Connor John Connor wrote:


One of a handful of flexible connection symbols we use. ....

That [the flexible-hose aspect, apart from the fittings] appears to be just AutoCAD's ZIGZAG linetype.  Might I assume that mmaurigi is looking for something different?


Edited by Kent Cooper - 30.Oct.2014 at 15:13
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 30.Oct.2014 at 15:17
That zigzag was drawn from scratch.  I know; I drew it a long, long time ago in a land far, far away and before AutoCAD even had a zigzag linetype.

I think the zigzag linetype would be just what the OP is looking for.  He might have to adjust the linetype scale which is easy to do.


Edited by John Connor - 30.Oct.2014 at 15:25
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 30.Oct.2014 at 17:08
Something sort-of like the "look" of the flexible-hose indication in the second link in my first reply, though a little wider in comparison with the S-curvature spacing:

*FlexHose,Flexible Hose graphic, continuous S-configuration
A,0,-.333333,["U",Standard,x=-.333333,y=-.6,s=1.0],-.666666,["U",Standard,x=.333333,y=.6,s=1.0,r=180],-.333333

That's assuming the "STANDARD" Text Style has the default TXT.shx font assigned.  It gets that "U" text element idea from the N12 linetype in my first link [which makes a "drawing" representation of a physical hose, rather than the second link's and this linetype's graphic symbol approach], placing one U on each side alternating [and scaling them differently].

If you don't mind the result being wider, you can eliminate the little crossings of the U's verticals on curves by replacing the .6's in the y coordinates of the text-element positionings with 1.0.

Of course, something with a look more exactly like whatever you want can be done with a Shape definition and a linetype definition incorporating it, or possibly a text element taken from some symbol font such as Wingdings, if you find such a font with a character of the right shape.


Edited by Kent Cooper - 30.Oct.2014 at 17:09
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 04.Nov.2014 at 17:45
Originally posted by Kent Cooper Kent Cooper wrote:

Something sort-of like the "look" of the flexible-hose indication in the second link in my first reply, though a little wider in comparison with the S-curvature spacing:
....
If you don't mind the result being wider, you can eliminate the little crossings of the U's verticals on curves by replacing the .6's in the y coordinates of the text-element positionings with 1.0.
....
Or, here's a version that uses lower-case c's, turned at 90-degree rotations, for a narrower overall width without the crossings on curves that the upper-case U's give you:

*FlexHose,Flexible Hose continuous S-configuration
A,0,-.333333,["c",Standard,x=-.333333,y=.666666,s=1.0,r=270],-.666666,["c",Standard,x=.333333,y=-.666666,s=1.0,r=90],-.333333
Back to Top

Related CAD tips:


 Post Reply Post Reply
  Share Topic

Forum Jump Forum Permissions View Drop Down
