Topic ClosedChoose the level line broken vertical lines, used
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
lijinsong View Drop Down
Groupie
Groupie


Joined: 06.Dec.2014
Location: China
Using: 2014
Status: Offline

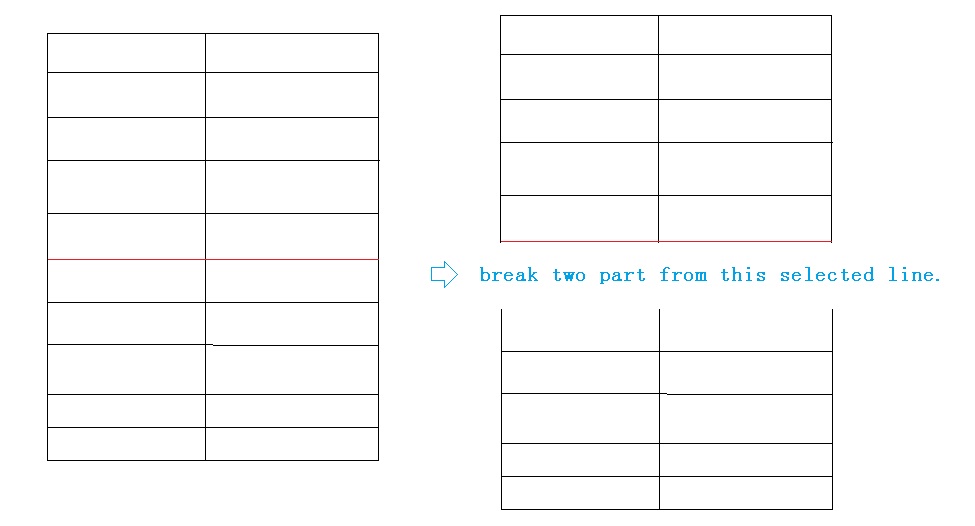

Points: 27 		Direct Link To This Post Topic: Choose the level line broken vertical lines, used
    Posted: 06.Dec.2014 at 18:46
(defun c:dk()
   (setq en    (entget(car(entsel)))
            pnt1 (cdr(assoc 10 en))
            pnt2 (cdr(assoc 11 en))
            stn   (ssget "C" pnt1 pnt2(list(cons 0 "line")))
            stnl  (sslength stn)
            n     0
   )
   (repeat stnl
       (setq stne(ssname stn n)
                stnen(entget stne)
                pnt3(cdr(assoc 10 stnen))
                pnt4(cdr(assoc 11 stnen))
                intpnt(inters pnt1 pnt2 pnt3 pnt4)
       )
       (command "break" stne  "non"intpnt "non"intpnt)
       (setq n(1+ n))
   )
)
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 07.Dec.2014 at 18:52
Why should a CAD tech use this routine?
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
