Topic ClosedThe title underline alignment text.
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
lijinsong View Drop Down
Groupie
Groupie


Joined: 06.Dec.2014
Location: China
Using: 2014
Status: Offline
Points: 27 		Direct Link To This Post Topic: The title underline alignment text.
    Posted: 07.Dec.2014 at 09:18

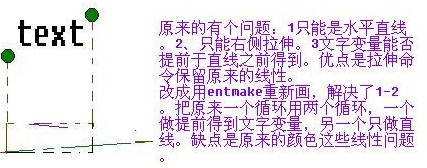

(defun c:la ( )

   (vl-load-com)

   (setq  stn    (ssget)

          stnl   (sslength stn)

          pntlst nil

          n      0

   )

   (repeat stnl

      (setq stnn (ssname stn n)

            stnt (cdr(assoc 0 (entget stnn)))

      )

      (if (= stnt "TEXT") (progn

           (setq stnh (cdr(assoc 40 (entget stnn))))

           (setq stno (vlax-ename->vla-object stnn))

           (vla-getboundingbox stno 'minpnt 'maxpnt)

           (setq minpnt (vlax-safearray->list minpnt)

                 maxpnt (vlax-safearray->list maxpnt)

           )

      ))

      (setq n(1+  n) )

   )

   (setq n 0)

   (repeat stnl

       (setq stnn (ssname stn n)

             stnt (cdr(assoc 0 (entget stnn)))

       )

       (if (= stnt "LINE") (progn

           (setq ;stnc (cdr(assoc 62 (entget stnn)))

                 stny (cdr(assoc 8 (entget stnn)))

           )

           (setq stno (vlax-ename->vla-object stnn))

           (vla-getboundingbox stno 'minp 'maxp)



           (setq minp (vlax-safearray->list minp)

                 maxp (vlax-safearray->list maxp)



                 minp(list(car minpnt)(cadr minp))

                 maxp(list(car maxpnt)(cadr minp))



           )

           (setq pntlst(cons (list minp maxp stnn) pntlst))

       ))

       (setq n(1+ n))

   )

   (foreach pnt pntlst

       (entmake

                   (list

                             (cons 0 "LINE")

    (cons 10 (car pnt))

    (cons 11 (cadr pnt))

    (cons 62 7)

                             (cons 8 stny)

  )

      )

      (entdel (caddr pnt))

   )

)
