Guys, is there anyone knows.. How to make this 2D star become 3D star?


I was trying to use "extrude" command, but it doesn't works. So, can you help me, guys?
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 11.Mar.2015 at 10:34
I could help you if 1) I could see the star and 2) if I had a copy of the DWG file.

Let me guess.  Instead of a solid model you end up with surfaces.  Is that it?

Did you know that if you extrude plain lines you end up with surfaces?

Did you know that if you use the PRESSPULL command instead of the EXTRUDE command on a profile created using plain lines you'll get a solid instead of surfaces?


Edited by John Connor - 11.Mar.2015 at 10:45
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 11.Mar.2015 at 10:52

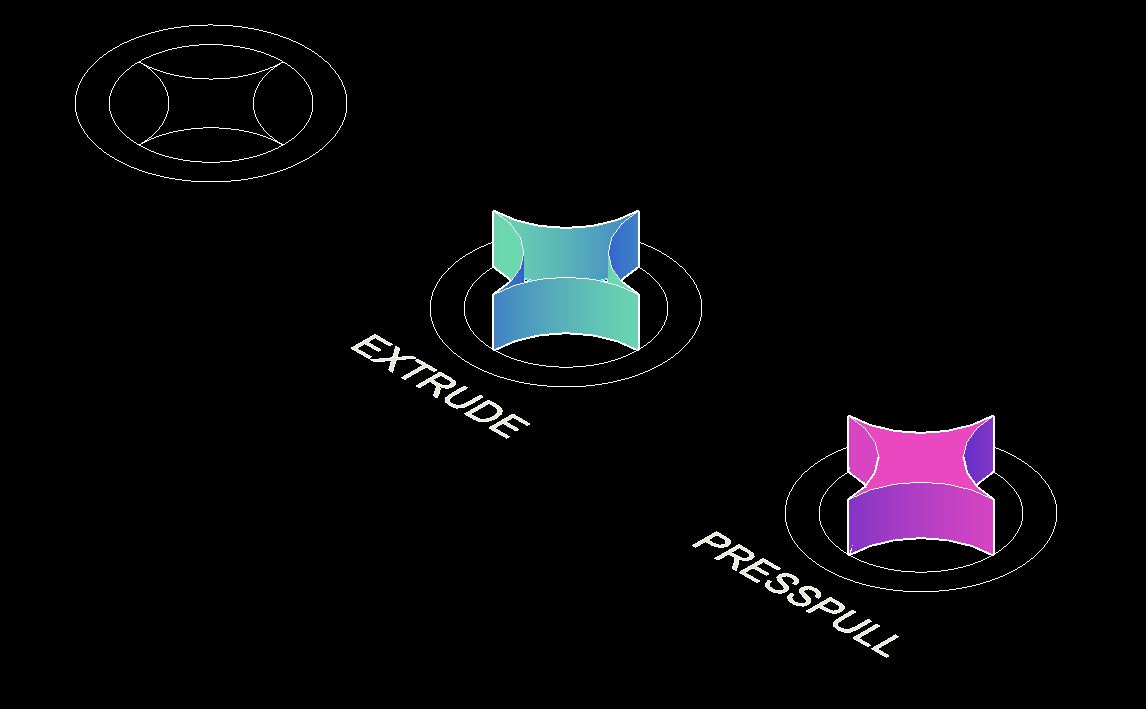

An example.  2D star within circle using plain lines/arcs.  Cyan colored star was created using the EXTRUDE command.  Magenta colored star was created using the PRESSPULL command.  If you use the PEDIT command with the JOIN option to join all the arcs then EXTRUDE would result in a solid not surfaces.
