Topic ClosedBeginner needs help with modeling subject

 Post Reply Post Reply
Author
somnas View Drop Down
Newbie
Newbie


Joined: 05.Apr.2015
Location: Sweden
Using: AutoCAD
Status: Offline
Points: 4
Direct Link To This Post Topic: Beginner needs help with modeling subject
    Posted: 05.Apr.2015 at 02:15
Hi there!

I'm new to everything that involves CAD but I've found that I could really use some basic cad-knowledge in my hobby which is scale modeling. I've seen some guys use AutoCAD to make a cutting pattern which they then send to their cutting machine which makes the mask. It can look like this:

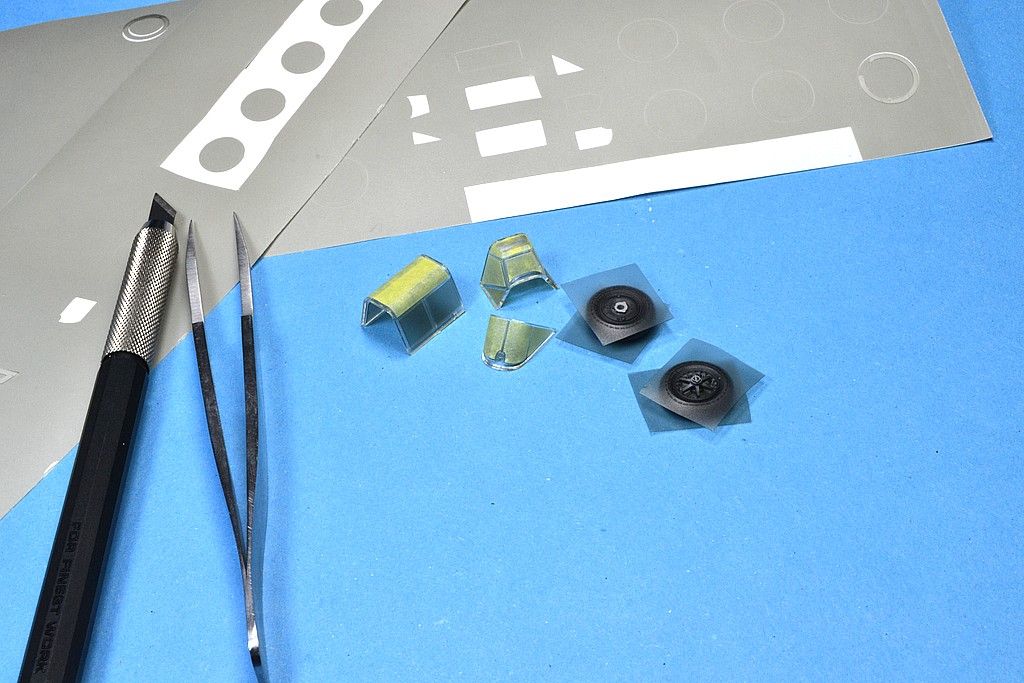

The masks are very useful, here the same guy has made masks to help with the painting of the canopy and wheels:

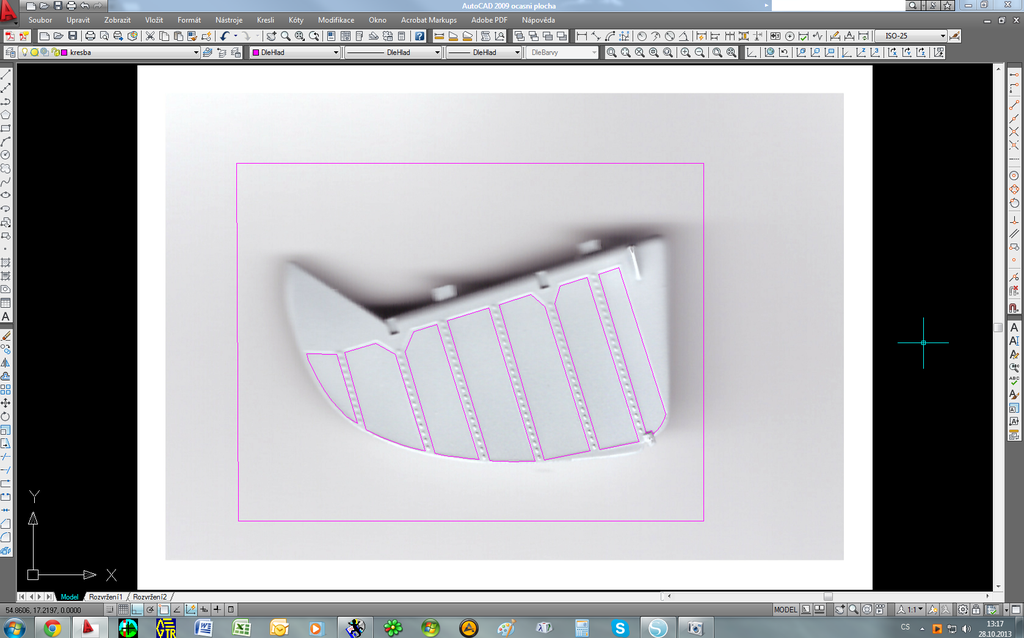

On the pictures it looks like he just takes a photo of the part he want masked, then imports that picture to autoCAD where he draws the cutting pattern. It seems so simple but there has to be some measuring involved?! Can anyone describe how this process is done?

Thanks,

Erik


Back to Top
ktahameed View Drop Down
Groupie
Groupie


Joined: 05.Feb.2015
Location: United Arab Emirates
Using: AUTOCAD16
Status: Offline
Points: 56
Direct Link To This Post Posted: 05.Apr.2015 at 09:02
Hey, HERIC,
There is Some software Series for Plate Shape Cutting with integrated 2D drawing, tool pathing, true shape nesting, code verification & NC generation, offering a complete low-cost solution to profile cutting. are u asking about thatg one?  please check this site http://www.fastcam.com/fastcam.html
ABUASHIKA
Back to Top
somnas View Drop Down
Newbie
Newbie


Joined: 05.Apr.2015
Location: Sweden
Using: AutoCAD
Status: Offline
Points: 4
Direct Link To This Post Posted: 05.Apr.2015 at 10:09
Thanks, I will look more into that.
My question though is not what program to use but how the process is made, is it possible to simply photograph a piece I want masked, import that picture to my cad-program and and design the cutting pattern? What measurements needs to be made?
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
Direct Link To This Post Posted: 05.Apr.2015 at 12:31
Yes, it's possible but don't expect 100% accuracy.  You'll have to know at least one dimension so the image can be scaled correctly.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>

Back to Top
somnas View Drop Down
Newbie
Newbie


Joined: 05.Apr.2015
Location: Sweden
Using: AutoCAD
Status: Offline
Points: 4
Direct Link To This Post Posted: 05.Apr.2015 at 18:57
Alright, I will try it out, thanks!
Back to Top
