   Hi everyone I'm sure you have all been through this:
I'm used to drawing in m, I have a new project and drawings (to use as Xref) come in cm. I know how to scale a drawing to what I want, so I can start designing in cm.  Problem comes with the dimensions, when I incorporate the dims i usually use they don't work (they are set to m)
Is there a way to change the dimensions to what I need? I've tried to change the scale factor 100 but it doesn't do anything.
Any help would be much appreciated I don't want to have to draw all the dimensions from scratch.
I'm posting two images first is my drawing in M second in cm

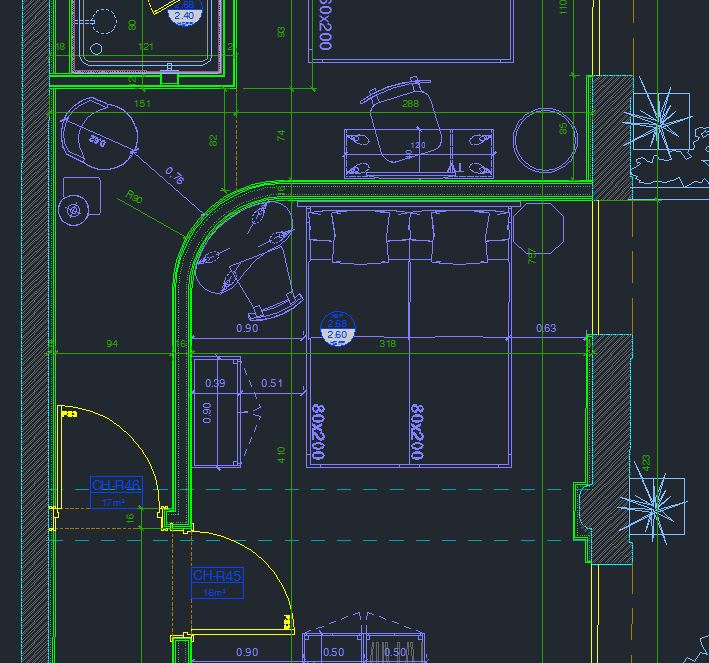

drawing in cm:

drawing in m:

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
eldiego Members Profile Send Private Message Find Members Posts Add to Buddy List Newbie Joined: 30.Sep.2015 Location: France Using: autocad2014 Status: Offline Points: 3	Topic: dimensions from m to cm Posted: 30.Sep.2015 at 20:14
	Hi everyone I'm sure you have all been through this: I'm used to drawing in m, I have a new project and drawings (to use as Xref) come in cm. I know how to scale a drawing to what I want, so I can start designing in cm. Problem comes with the dimensions, when I incorporate the dims i usually use they don't work (they are set to m) Is there a way to change the dimensions to what I need? I've tried to change the scale factor 100 but it doesn't do anything. Any help would be much appreciated I don't want to have to draw all the dimensions from scratch. I'm posting two images first is my drawing in M second in cm drawing in cm: drawing in m:

John Connor Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 30.Sep.2015 at 20:21
	You're doing all of this in model space aren't you? ~~Are the dimensions annotative?~~ Edited by John Connor - 01.Oct.2015 at 11:32
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

eldiego Members Profile Send Private Message Find Members Posts Add to Buddy List Newbie Joined: 30.Sep.2015 Location: France Using: autocad2014 Status: Offline Points: 3	Posted: 01.Oct.2015 at 09:41
	yes, model space. what do you mean by dimensions being annotative?

John Connor Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 01.Oct.2015 at 12:13
	Forget about annotative. So you created a new dimstyle, clicked on the Modify button, then clicked on the Primary Units tab and where it says Measurement Scale > Scale Factor you set this to 100. Is that correct? If you did then a dimension of 1 unit would now read 100 units wouldn't it? But you say it did not work. That would only happen if you did NOT set the new dimstyle as Current.
