Hello.
I am just learning AutoCAD 2016 by myself and of course it has a lot of dificulties.

As one of them, I wonder how to make lines into a complete boundary(of course it is closed).
I usually use 'Extrude' to make solid, because the working piece has simple structure(several cylinders, so all I need to do was just extrude a circle.)

But when I define a boundary by drawing several lines and extrude it, that doesn't give a solid but a surface made by each line(thus they are just boundary surfaces).
I have to make a pillar with such boundary but don't know how to do.
I tried to make a group with that lines but extrude still doesn't give me a pillar.

Anyone have similar experiences before?

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
johnthelegend Members Profile Send Private Message Find Members Posts Add to Buddy List Newbie Joined: 13.Jan.2016 Location: Korea, South Using: AutoCAD 2016 Status: Offline Points: 2	Topic: From lines to boundary Posted: 13.Jan.2016 at 08:16
	Hello. I am just learning AutoCAD 2016 by myself and of course it has a lot of dificulties. As one of them, I wonder how to make lines into a complete boundary(of course it is closed). I usually use 'Extrude' to make solid, because the working piece has simple structure(several cylinders, so all I need to do was just extrude a circle.) But when I define a boundary by drawing several lines and extrude it, that doesn't give a solid but a surface made by each line(thus they are just boundary surfaces). I have to make a pillar with such boundary but don't know how to do. I tried to make a group with that lines but extrude still doesn't give me a pillar. Anyone have similar experiences before?

John Connor Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 13.Jan.2016 at 11:23
	Try using the PressPull command. You can also try creating a region first from your groups of lines, etc. then extrude. I am a bit confused though. First you mention trying to extrude a circle then you say you had a bunch of lines that you extruded by ended up with surfaces. Finally you talk about creating a pillar. I'm not really sure what it is you are trying to do. Can you post an image or upload an actual .dwg file? If one extrudes a circle they should end up with a closed cylinder. This could be used to create a pillar (an ornamental column). Then one would add the base and top cap. Is the pillar going to be tapered? Edited by John Connor - 13.Jan.2016 at 11:27
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

John Connor Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 13.Jan.2016 at 12:41

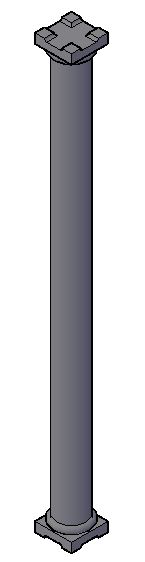

	A simple 3D pillar created using solids. >
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

Kent Cooper Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 686	Posted: 13.Jan.2016 at 17:01
	To make a closed boundary of Lines into a single object so that when it's Extruded you get a 3D Solid, use the PEDIT command and its Join option, to make the Lines into a closed Polyline. [If it's not clear enough what to do from the prompts, read about it in Help.]

John Connor Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 13.Jan.2016 at 17:58
	Try using PressPull first as it will work even if the "boundary" is comprised of a couple of lines, a polyline, an arc and a spline. The result will still be a 3Dsolid.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
