Topic Closed3D solid edit
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
TCosmincadcz View Drop Down
Newbie
Newbie


Joined: 12.Oct.2015
Location: Romania
Using: Autocad2016
Status: Offline
Points: 11 		Direct Link To This Post Topic: 3D solid edit
    Posted: 25.Feb.2016 at 17:42
I would like draw a barrel. I have one 3d solid cylinder and wanted to revolume it in volume as a barrel.  CAn i do something? Wink Thanks.
I already created a 2d wireframes.
way
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 25.Feb.2016 at 19:54
Your barrel (or do you mean drum like what chemicals are sometimes shipped in?) can be created in at least three different ways.

-Revolve a half profile
-Subtract one cylinder from another
-Use the SHELL command on your cylinder
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 25.Feb.2016 at 20:18

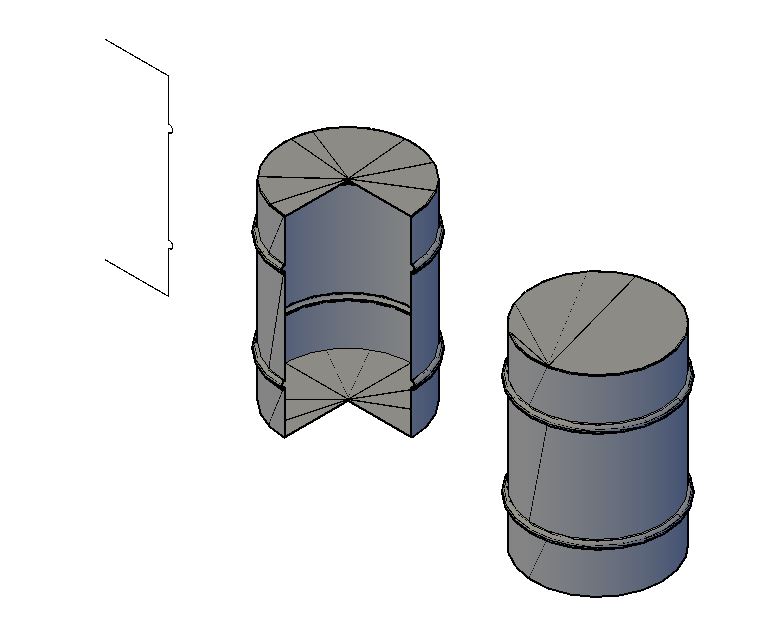

Chemical drum in profile, revolved 270 degrees, and revolved 360 degrees.
Visual style: Conceptual
Both drums are solids.


Edited by John Connor - 25.Feb.2016 at 20:19
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
TCosmincadcz View Drop Down
Newbie
Newbie


Joined: 12.Oct.2015
Location: Romania
Using: Autocad2016
Status: Offline
Points: 11 		Direct Link To This Post Posted: 25.Feb.2016 at 20:25
Your answer is correct. I appreciate it. My case is bombated barrel. I understand first two anexe of answer but shell can not understAND it. It appers os command.
way
Back to Top
TCosmincadcz View Drop Down
Newbie
Newbie


Joined: 12.Oct.2015
Location: Romania
Using: Autocad2016
Status: Offline
Points: 11 		Direct Link To This Post Posted: 25.Feb.2016 at 20:26
Sound a good idea with chemical barrel. I will watch. Thanks.
way
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 26.Feb.2016 at 00:07
Originally posted by TCosmincadcz TCosmincadcz wrote:

Your answer is correct. I appreciate it. My case is bombated barrel. I understand first two anexe of answer but shell can not understAND it. It appers os command.


AutoCAD has a SHELL command that has nothing to with the OS.  Look it up in the Help file if you don't believe me.

http://tutorial45.com/the-shell-command-in-autocad/
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
