So, I have run into a problem with an assignment, which, for many of you on here, is not really a problem at all. Below I have attached a picture of said assignment. It would be greatly appreciated, if someone could tell me, which commands are to be used to achieve the pictured result. I thank you in advance.
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
Direct Link To This Post Posted: 27.Feb.2016 at 18:37

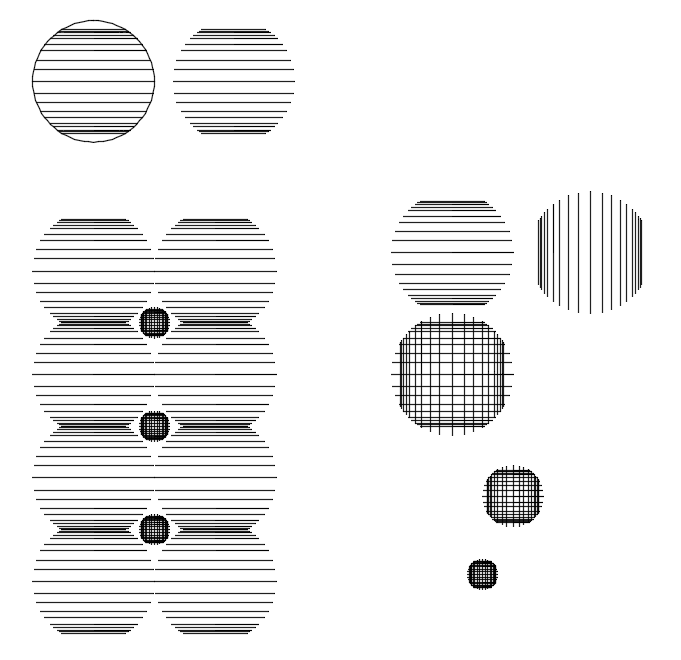

The eight circular hatch patterns could be replicated using the ARRAY command.  All you need is just one to get the process started.

The three smaller circular patterns look to me as though a single large circular pattern was copied, rotated, overlaid on another one then scaled down.  Finally it too could be arrayed in a single row.

Without testing my theory I can't be 100% sure.  Maybe later when I have some spare time I can fire up my CAD computer and see what I can come up with.
