Topic Closedswirly lines
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
dk5 View Drop Down
Newbie
Newbie


Joined: 13.Nov.2013
Location: United States
Using: autocad2013
Status: Offline
Points: 8 		Direct Link To This Post Topic: swirly lines
    Posted: 20.Apr.2016 at 20:27

Any tips on how to do this swirlytile mosaic in a 4" x12" in Autocad LT.

dkominik@gmail.com
Back to Top
Robert_D View Drop Down
Senior Member
Senior Member


Joined: 21.Oct.2013
Location: United States
Using: BricsCAD v25, AutoCAD2006
Status: Offline
Points: 208 		Direct Link To This Post Posted: 20.Apr.2016 at 21:56
What is "this swirlytile mosaic"?
Have you googled 'mosaic hatch pattern'?
Back to Top
dk5 View Drop Down
Newbie
Newbie


Joined: 13.Nov.2013
Location: United States
Using: autocad2013
Status: Offline
Points: 8 		Direct Link To This Post Posted: 20.Apr.2016 at 22:43
uploads/421007/tilemosaic.zip


I thought I had include this...this is what I am trying to do as a tile border in a bathroom. Any tips?
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 21.Apr.2016 at 14:41
Use IMAGEATTACH to bring the image into LT then trace over it. Resize as required. When you are satisfied create a block.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
dk5 View Drop Down
Newbie
Newbie


Joined: 13.Nov.2013
Location: United States
Using: autocad2013
Status: Offline
Points: 8 		Direct Link To This Post Posted: 21.Apr.2016 at 15:12
I guess I'm not good at doing curves. Would I use ARC? How does ARC work? Or should I use a different tool? I did the IMAGEMATCH.
Thank-you for the help.

Darby
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 21.Apr.2016 at 16:10
Yes, you could use the Circle or the Arc command.  Or...you could trace over the linework using a single continuous polyline then invoke the PEDIT command and either Fit curve or Spline.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 21.Apr.2016 at 16:44

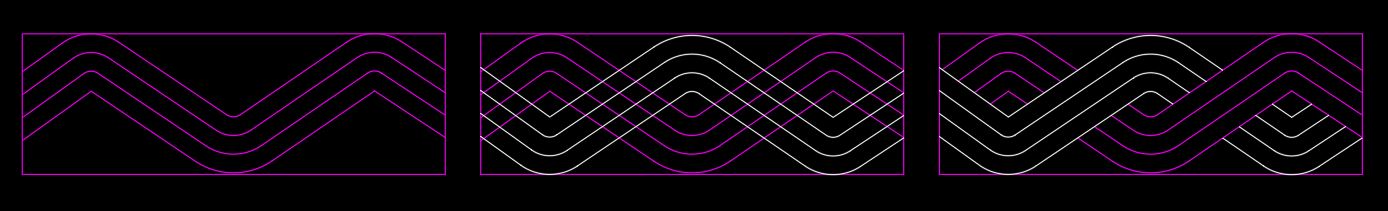

This took less than three minutes to do using the ImageAttach, Polyline, Fillet, Offset, Trim, Mirror and Rectangle commands.  Initial size: .45x1.36.  Now all one would have to do is scale it up to whatever size is required.




Edited by John Connor - 21.Apr.2016 at 17:24
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
