create solid model
Post Reply
|
Page 123> |
| Author | |
f-yazdand
Newbie
Joined: 13.Aug.2012 Location: United States Using: autocad2011 Status: Offline Points: 13 |
 Topic: create solid modelPosted: 25.Sep.2016 at 21:12 |
|
HI Guys,
I have a model which created in sketchup but I want to have the forms in solid in order to import and use it in Vasari, but I tried different methods and coudnt make it as solid ( by soild I mean the rectangles as well as curved surfaces). Attach is my model. uploads/298250/file_rar.zip thank you !
|
|
 |
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 26.Sep.2016 at 12:59 |
|
Can you export the model from Sketchup in a file type that can be opened in AutoCAD (like DXF)?
|
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
f-yazdand
Newbie
Joined: 13.Aug.2012 Location: United States Using: autocad2011 Status: Offline Points: 13 |
Posted: 29.Sep.2016 at 18:42 |
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 29.Sep.2016 at 19:17 |
|
Don't thank me yet; I haven't done anything.
From the looks of it your geometry came in as blocks and once exploded it's a bunch of polyline triangles. Not the best geometry to work with. Some redrawing would be necessary. |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 29.Sep.2016 at 19:54 |
|

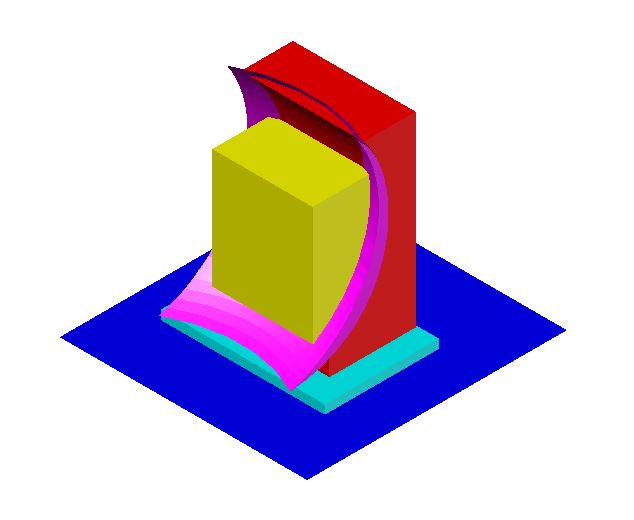

The easy stuff first then comes the challenging part which I won't be able to get to for a few hours. I have things to do.
|
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 30.Sep.2016 at 12:31 |
|

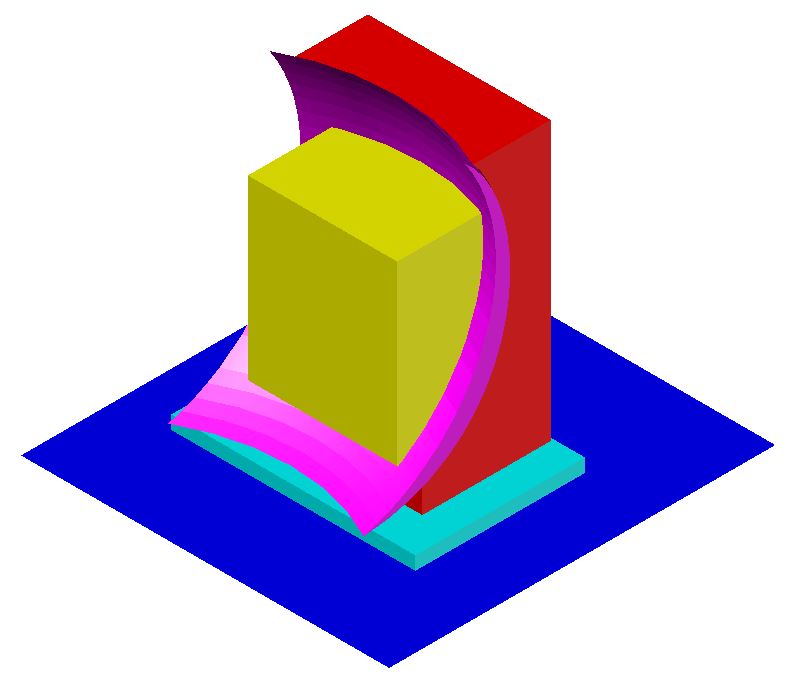

Making progress.
 |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
f-yazdand
Newbie
Joined: 13.Aug.2012 Location: United States Using: autocad2011 Status: Offline Points: 13 |
Posted: 30.Sep.2016 at 12:38 |
|
HI John, the point is I dont find the solution to make each peice in solid( as you see there are three geometry) if you give me clue then I can try ..
thank you
|
|
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 30.Sep.2016 at 12:50 |
|
I created profiles of different shapes using polylines then used the LOFT command (with Guide option in two instances) to create the solids.
|
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 30.Sep.2016 at 13:36 |
|

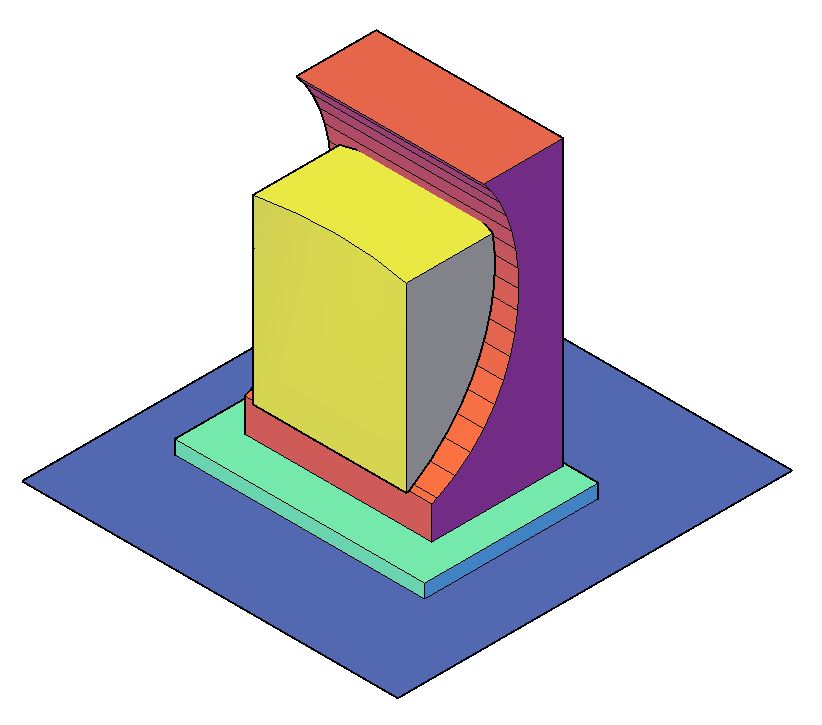

OK...I'm done. I had to remove a portion of the red solid that projected through the curved magenta solid. I did this using the Subtract command (on a copy of the objects) followed by the Separate command then erasing the protruding portion of the solid.
 |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
|
John Connor
Senior Member
Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175 |
Posted: 30.Sep.2016 at 13:58 |
|

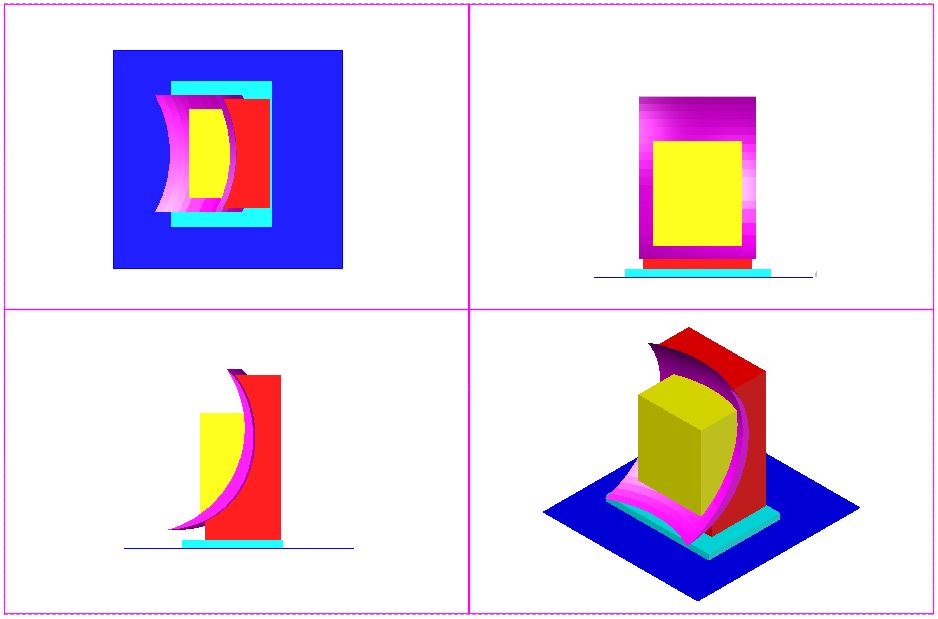

Last one then I am done (I think). Four views.
 |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."
<<AutoCAD 2015>> |
|
|
|
