   HELLO ALL YOU CAD LOVERS,
I HAVE BEEN USING AUTOCAD FOR 20+ YEARS, 2D AND 3D, BUT MY 3D ABILITIES ARE VERY LIMITED TO, REGION, EXTRUDE, UNION, SLICE, SUBTRACT, AND A COUPLE MORE SIMPLE COMMANDS.  ALL THESE YEARS THESE BASIC COMMANDS HAVE SUITED ME WELL, BUT I KNOW I NEED TO LEARN SOME MORE, LIKE SURFACE.......

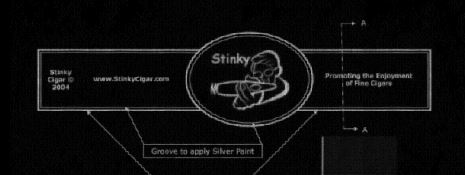

HERE IS MY OBJECTIVE.  I AM DESIGNING THIS CIGAR POST ASHTRAY STAND, AND I NEED TO PUT A BAND AROUND THE CIGAR.  IN 2D THE BAND LOOKS LIKE THIS ( THE SECOND  PICTURE) THE CIGAR IS 6 CENTIMETERS IN DIAMETER, BUT DIMENSIONS AREN'T IMPORTANT AT THE MOMENT.  I WANT THIS BAND TO GO AROUND A 3D ROD WHICH REPRESENTS THE CIGAR.  FROM A SIDE VIEW I WANT THE BAND TO BE THICK, LIKE SAY 1 MILLIMETER.

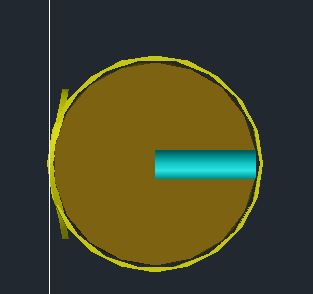

THIS IS WHAT I HAVE SO FAR, AS YOU CAN SEE THE ELLIPSE PART OF THE BAND SHOULD BE SMOOTH FLOWING AROUND THE CIGAR WITH THE REST OF THE BAND

THE GRAPHIC ON THE BAND IS NOT IMPORTANT AT THIS POINT, ALL I WANT TO DO IS PUT A SMOOTH FLOWING BAND AROUND THE CIGAR, WITH THICKNESS AS LIKE IN MY SAMPLES
WHO OUT THERE CAN SHOW ME THE BEST AND EASIEST WAY TO ACHIEVE THIS.

THANK YOU

ERIC

Edited by eaaronf01 - 17.Jan.2017 at 01:28

CZ \| EN \| DE
Login or
registration
	Visitors: 7118

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
eaaronf01 Members Profile Find Members Posts Groupie Joined: 28.Feb.2015 Location: United States Using: Autocad 2017 Status: Offline Points: 24	Topic: 3d surfaces, advanced 3d, 3d modeling, 3d general Posted: 17.Jan.2017 at 01:02
	HELLO ALL YOU CAD LOVERS, I HAVE BEEN USING AUTOCAD FOR 20+ YEARS, 2D AND 3D, BUT MY 3D ABILITIES ARE VERY LIMITED TO, REGION, EXTRUDE, UNION, SLICE, SUBTRACT, AND A COUPLE MORE SIMPLE COMMANDS. ALL THESE YEARS THESE BASIC COMMANDS HAVE SUITED ME WELL, BUT I KNOW I NEED TO LEARN SOME MORE, LIKE SURFACE....... HERE IS MY OBJECTIVE. I AM DESIGNING THIS CIGAR POST ASHTRAY STAND, AND I NEED TO PUT A BAND AROUND THE CIGAR. IN 2D THE BAND LOOKS LIKE THIS ( THE SECOND PICTURE) THE CIGAR IS 6 CENTIMETERS IN DIAMETER, BUT DIMENSIONS AREN'T IMPORTANT AT THE MOMENT. I WANT THIS BAND TO GO AROUND A 3D ROD WHICH REPRESENTS THE CIGAR. FROM A SIDE VIEW I WANT THE BAND TO BE THICK, LIKE SAY 1 MILLIMETER. THIS IS WHAT I HAVE SO FAR, AS YOU CAN SEE THE ELLIPSE PART OF THE BAND SHOULD BE SMOOTH FLOWING AROUND THE CIGAR WITH THE REST OF THE BAND THE GRAPHIC ON THE BAND IS NOT IMPORTANT AT THIS POINT, ALL I WANT TO DO IS PUT A SMOOTH FLOWING BAND AROUND THE CIGAR, WITH THICKNESS AS LIKE IN MY SAMPLES WHO OUT THERE CAN SHOW ME THE BEST AND EASIEST WAY TO ACHIEVE THIS. THANK YOU ERIC Edited by eaaronf01 - 17.Jan.2017 at 01:28
	Eric Foster

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 11:32
	Is other words you want the elliptical portion of the band to fit the curve of the cigar. Is that correct?
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 11:58

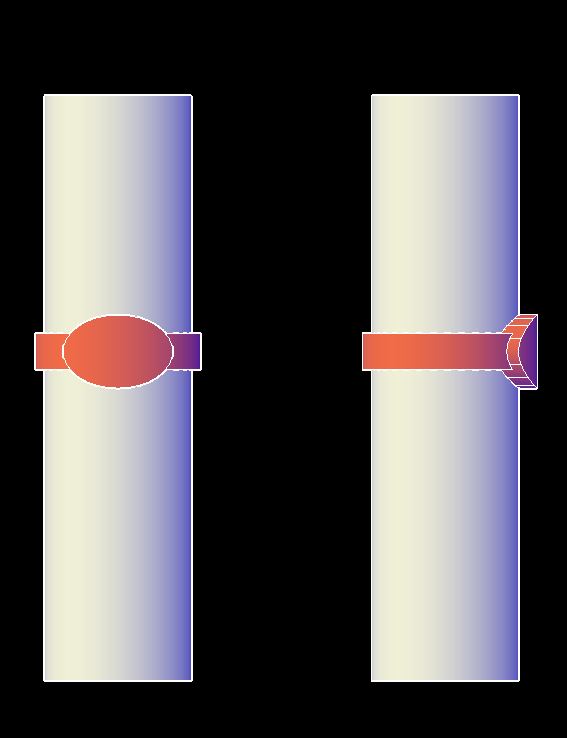

	Is this kind of what you had in mind? Forget for the moment that we're talking about a cigar band. The following is for demonstration purposes only.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 12:02

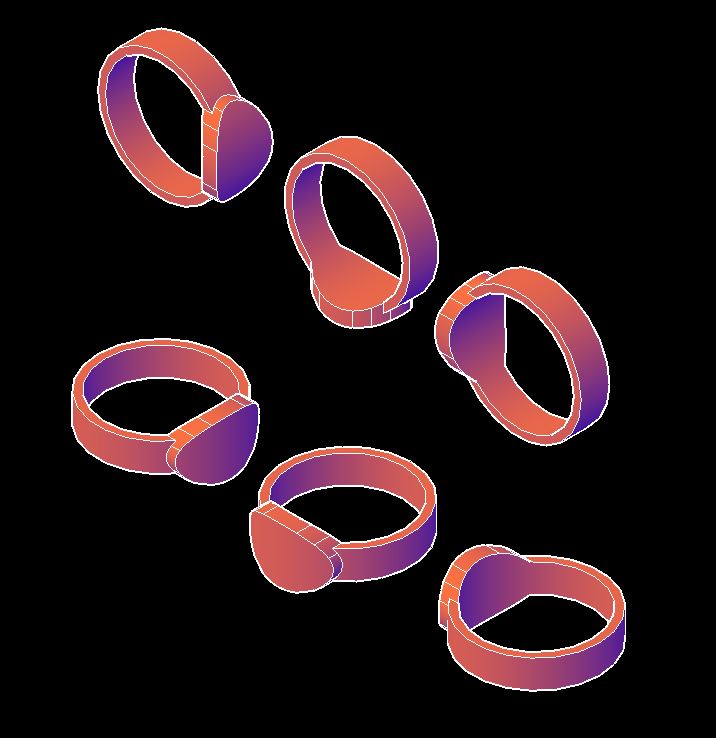

	Another view. The basic concept was based upon extruding an ellipse then slicing off the front and back. In the examples shown I did not slice off the front so it was flush with the band. You however would. Edited by John Connor - 17.Jan.2017 at 12:22
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

eaaronf01 Members Profile Find Members Posts Groupie Joined: 28.Feb.2015 Location: United States Using: Autocad 2017 Status: Offline Points: 24	Posted: 17.Jan.2017 at 12:21
	YES, THAT IS PRETTY GOOD!! THE ELLIPTICAL PORTION DOESN'T HAVE TO BE QUITE SO THICK, BUT THE WAY THAT THE BAND FOLLOWS THE CURVE AROUND THE POST IS EXACTLY WHAT I AM AFTER. WHAT COMMANDS DO YOU USE TO DO THIS? IM SURE IF I PLAYED AROUND WITH IT LONG ENOUGH AND WITH TRIAL AND ERROR I COULD PROBABLY ACHIEVE IT, BUT KNOWING AUTOCAD, THERE IS A VERY SIMPLE WAY TO DO THIS, AM I RIGHT? SO HOW DID YOU DO IT? I WOULD GREATLY APPRECIATE THE ENLIGHTENMENT, IF YOU WOULDN'T MIND. THANK YOU ERIC
	Eric Foster

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 12:29

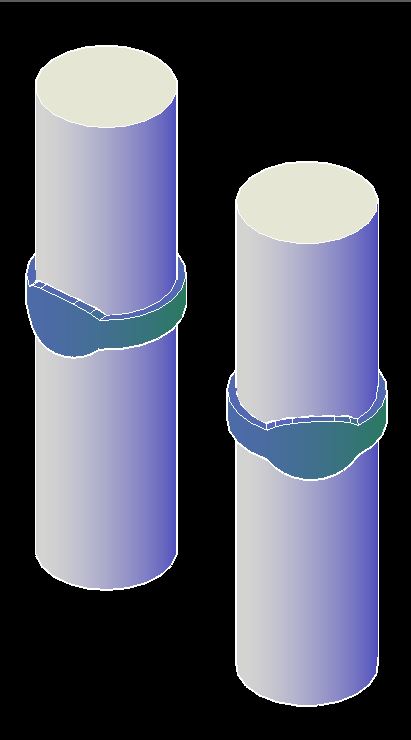

	Yes, my band is thick but like I previously said this was meant for demonstration purposes only. Your results may vary. Here is what the band looks like with the elliptical portion cut flush with the band. I used the SLICE command with the Surface option. An extruded arc was my slicing surface for the front.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

eaaronf01 Members Profile Find Members Posts Groupie Joined: 28.Feb.2015 Location: United States Using: Autocad 2017 Status: Offline Points: 24	Posted: 17.Jan.2017 at 12:50
	YES!!! THIS IS EXACTLY WHAT I WANT? I HAVE NO IDEA HOW TO SLICE WITH SURFACE OPTION. IN FACT, I HAVE NEVER USED THE SURFACE COMMAND, OR EVEN WORKED WITH SURFACES AT ALL AND I DID NOT KNOW YOU COULD SLICE ON A CURVE
	Eric Foster

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 13:00
	Show me where I said I used a command called SURFACE. I didn't. I said I used the SLICE command which if you look at the command line has the following options. Specify start point of slicing plane or [planar Object/Surface/Zaxis/View/XY/YZ/ZX/3points] <3points>: You can "slice on a curve" by extruding an arc. A line or an arc that is extruded YIELDS a surface. The surface is an object that can be used to slice another surface or a solid.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 13:08

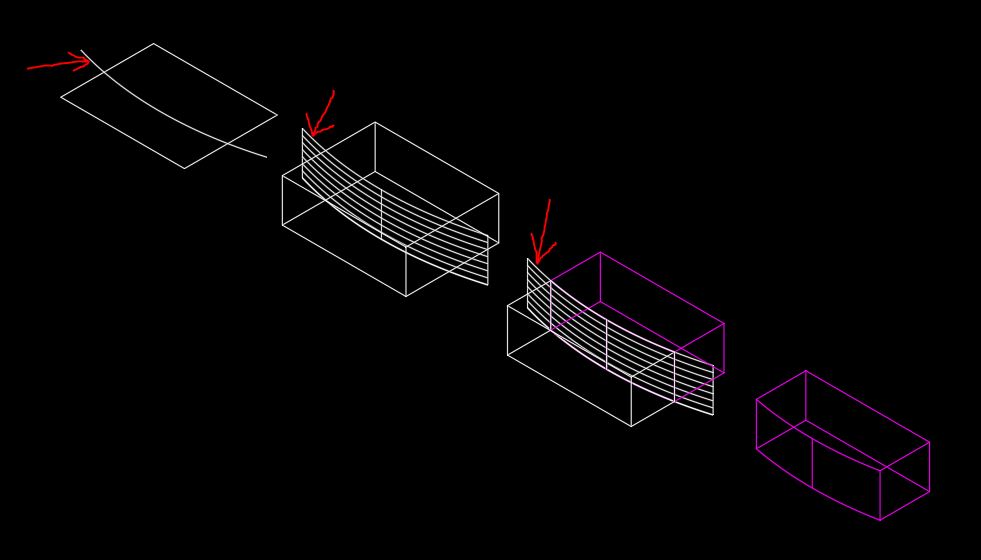

	A simple demonstration. The red arrow is pointing to the arc that ends up getting extruded. Visual style = 2Dwireframe.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>

John Connor Members Profile Find Members Posts Senior Member Joined: 01.Feb.2011 Location: United States Using: AutoCAD 2018 Status: Offline Points: 7175	Posted: 17.Jan.2017 at 13:11

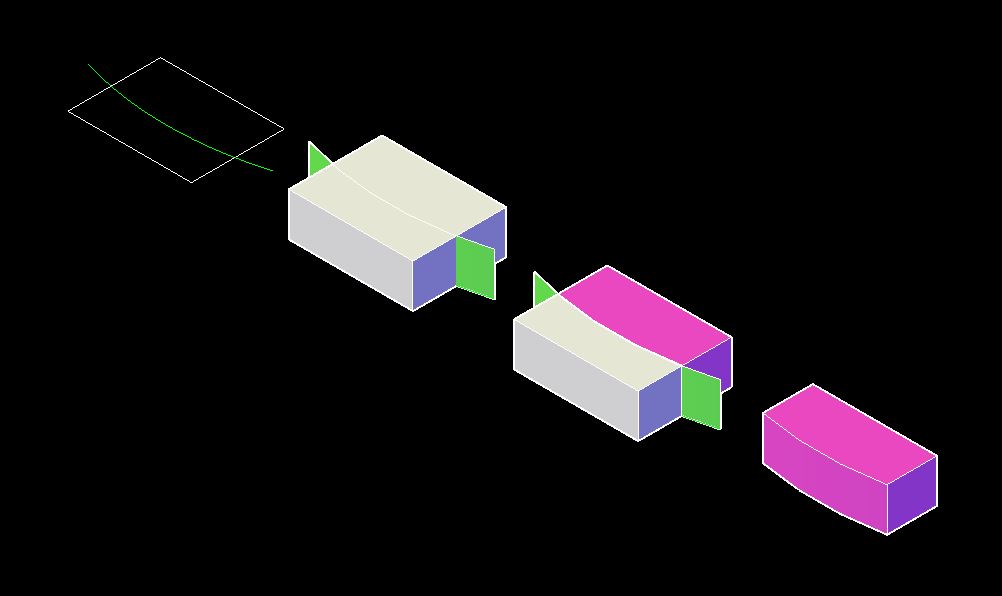

	Same demonstration only this time I changed the color of the arc to green and the visual style to conceptual.
	"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
