Topic ClosedAdding "<" or ">" to linetype definition
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
khcharteredengineers View Drop Down
Newbie
Newbie


Joined: 04.Apr.2017
Location: United Kingdom
Using: AutoCAD2017 LT
Status: Offline
Points: 4 		Direct Link To This Post Topic: Adding "<" or ">" to linetype definition
    Posted: 31.Jul.2017 at 17:12
HI Guys,

Trying to add greater than/less than arrows to my linetype. Have used the following definition:

*FIBRE-V<1,Fibre-V<1 ----FIBRE-V<1----FIBRE-V<1----FIBRE-V<1----FIBRE-V<1----FIBRE-V<1----FIBRE-V<1--
A,.5,-.2,["FIBRE-V<1",ARIAL,S=.1,U=0.0,X=-0.1,Y=-.05],-.5
*FIBRE-V>1,Fibre-V>1 ----FIBRE-V>1----FIBRE-V>1----FIBRE-V>1----FIBRE-V>1----FIBRE-V>1----FIBRE-V>1--
A,.5,-.2,["FIBRE-V>1",ARIAL,S=.1,U=0.0,X=-0.1,Y=-.05],-.5

I have included an arrow before when defining a pumped water main linetype; however this doesnt seem to work. Can arrows only be used in certain circumstances??

Any help greatly appreciated
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 31.Jul.2017 at 18:07

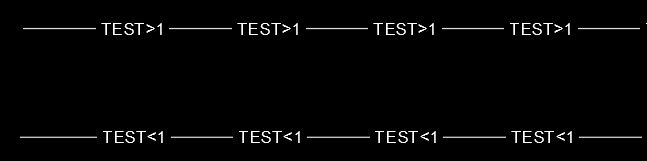

Is this what you are looking for?  Pay no mind to the spacing as it's a work-in-progress.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
khcharteredengineers View Drop Down
Newbie
Newbie


Joined: 04.Apr.2017
Location: United Kingdom
Using: AutoCAD2017 LT
Status: Offline
Points: 4 		Direct Link To This Post Posted: 31.Jul.2017 at 18:27
That's it John. The definition included in my initial post doesnt seem to work. Maybe it's a limitation with acadlt???
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 31.Jul.2017 at 18:27
I made an adjustment to the spacing and added a second version.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 31.Jul.2017 at 18:28
Originally posted by khcharteredengineers khcharteredengineers wrote:

That's it John. The definition included in my initial post doesnt seem to work. Maybe it's a limitation with acadlt???


I doubt it.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 31.Jul.2017 at 20:59
Originally posted by khcharteredengineers khcharteredengineers wrote:

....
I have included an arrow before when defining a pumped water main linetype; however this doesnt seem to work. Can arrows only be used in certain circumstances??
....
You may have used them as arrows before in a linetype definition (and so have I), but have you used one in a linetype name?  I haven't dug into it, but I know not all characters can be used in all types of names [of linetypes, hatch patterns, Blocks, Text Styles, etc.] -- try naming them without that somehow, and see whether they work.


Edited by Kent Cooper - 31.Jul.2017 at 21:01
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 686 		Direct Link To This Post Posted: 31.Jul.2017 at 21:30
Originally posted by Kent Cooper Kent Cooper wrote:

Originally posted by khcharteredengineers khcharteredengineers wrote:

.... I have included an arrow before when defining a ... linetype.... Can arrows only be used in certain circumstances?? ....
.... have you used one in a linetype name?  .... I know not all characters can be used in all types of names ....

FOUND IT in Help:

Linetype names can contain letters, digits, and the special characters dollar sign ($), hyphen (-), and underscore (_).

No allowance for < or >.
Back to Top
khcharteredengineers View Drop Down
Newbie
Newbie


Joined: 04.Apr.2017
Location: United Kingdom
Using: AutoCAD2017 LT
Status: Offline
Points: 4 		Direct Link To This Post Posted: 01.Aug.2017 at 07:34
Thanks guys for your help. All sorted now - it was the arrows in the linetype name that it didnt like
Back to Top
