FABRICATION DRAWING NUMBERING

 Post Reply Post Reply
Author
maheshm View Drop Down
Newbie
Newbie


Joined: 05.Jan.2016
Location: India
Using: 2012
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote maheshm Quote  Post ReplyReply Direct Link To This Post Topic: FABRICATION DRAWING NUMBERING
    Posted: 07.Aug.2017 at 06:17
HI!
        I AM WORKING AS A CAD ENGINEER I HAVE MADE MORE FABRICATION DRAWING FOR NEW PLANT PROJECT NOW THE PROJECT IS COMPLETED. SO I AM PLANNING TO SEGREGATE ALL FABRICATION DRAWING AND GIVING DRAWING NUMBERING ALSO COULD YOU TELL ME HOW TO GIVE DRAWING NUMBERING PROPERLY WITH EXAMPLE. Shocked



maheshm
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 6837
Post Options Post Options   Thanks (0) Thanks(0)   Quote John Connor Quote  Post ReplyReply Direct Link To This Post Posted: 07.Aug.2017 at 11:44
Isn't there a company standard to follow?
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>

Back to Top
maheshm View Drop Down
Newbie
Newbie


Joined: 05.Jan.2016
Location: India
Using: 2012
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote maheshm Quote  Post ReplyReply Direct Link To This Post Posted: 08.Aug.2017 at 12:45
There is no fabrication drawing previously only
maheshm
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 6837
Post Options Post Options   Thanks (0) Thanks(0)   Quote John Connor Quote  Post ReplyReply Direct Link To This Post Posted: 08.Aug.2017 at 19:43
Then I guess you can create your own methodology for numbering your drawings.  One company I know precedes the drawing number with a letter denoting the paper size.  Example:

D-12335

The "12335" may just be a consecutive number assigned as a project comes in.  Drawings assigned this master number will then get a sequential dash-number for each sheet.  Example:

D-12335-1 (for sheet 1), D-12335-2 (for sheet 2), D-12335-3, etc.

Now if there happens to be a smaller sheet size used for the next drawing in the sequence it might get numbered thusly...

C-12335-4

The "D" and "C" size designations obviously reference drawings done to an imperial scale.  You would substitute metric equivalents for the sheet size.  Do you understand me?

The last company I worked for numbered their drawings with the year followed by a consecutive number.  So, for example, the first job for the year 2017 would be numbered....

2017.001

Sheet numbers would start out as 2017.001.01, 2017.001.02, 2017.001.03, etc.

If you don't like either one of these ideas come up with one of your own.


Edited by John Connor - 09.Aug.2017 at 11:36
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>

Back to Top
maheshm View Drop Down
Newbie
Newbie


Joined: 05.Jan.2016
Location: India
Using: 2012
Status: Offline
Points: 18
Post Options Post Options   Thanks (0) Thanks(0)   Quote maheshm Quote  Post ReplyReply Direct Link To This Post Posted: 09.Aug.2017 at 08:51
thanks a lot sir i got a idea from this conservation i would make drawing number from this conservation Smile
maheshm
Back to Top
maheshm View Drop Down
Newbie
Newbie


Joined: 05.Jan.2016
Location: India
Using: 2012
Status: Offline
Points: 18

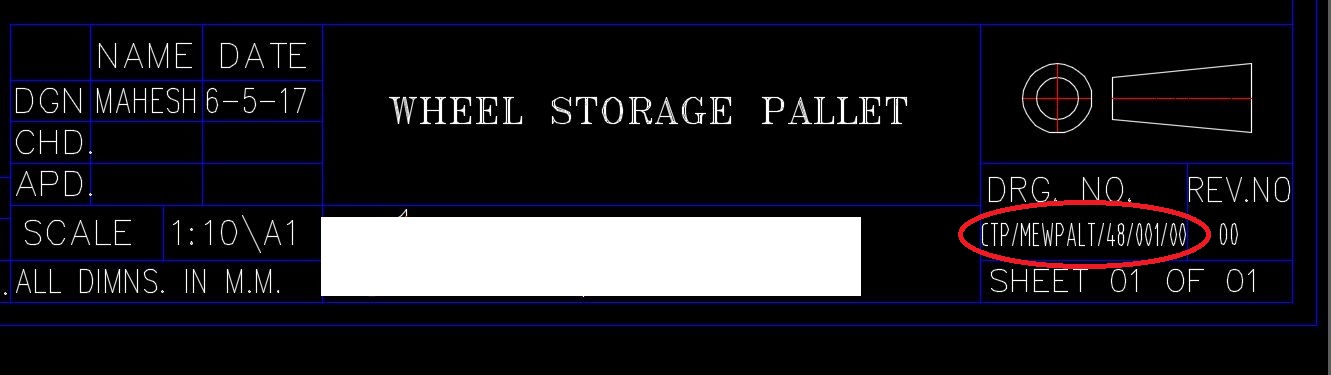

Post Options Post Options   Thanks (0) Thanks(0)   Quote maheshm Quote  Post ReplyReply Direct Link To This Post Posted: 17.Aug.2017 at 06:56
FINALY I CREATED DRAWING NUMBER THANKS A LOT JHON
maheshm
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 6837
Post Options Post Options   Thanks (0) Thanks(0)   Quote John Connor Quote  Post ReplyReply Direct Link To This Post Posted: 17.Aug.2017 at 13:04
It looks rather involved.  Can you explain what is supposed to mean?
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>

Back to Top
