 Topic: How to Draw This Arrow?
Posted: 20.Oct.2021 at 16:23 |
Can someone please tell me how to draw arrow like this?
Thanks
|
 |
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 21.Oct.2021 at 00:12 |
|
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1493
|
Posted: 21.Oct.2021 at 06:56 |
In 2D with ellipses and lines. In 3D with circles, lines and the EXTRUDE command but it looks like there is no thikness. Note : the extremity of the ribbon facing the extremity of the arrow is not vertical.
|
|
dery
Senior Member
Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 161
|
Posted: 21.Oct.2021 at 17:53 |
 John Connor wrote:
In 2D or 3D?
|
2D.
I know I can use ellipse command and do some trim command.
I am confuse and don't understand how to draw the correct direction of the arrow (or where the arrow is pointing at).
Please tell me step-by-step.
Edited by dery - 21.Oct.2021 at 17:54
|
|
dery
Senior Member
Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 161
|
Posted: 21.Oct.2021 at 17:59 |

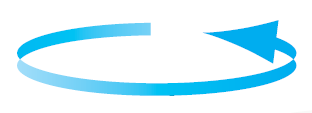

This is another example of the arrow.
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 22.Oct.2021 at 14:16 |

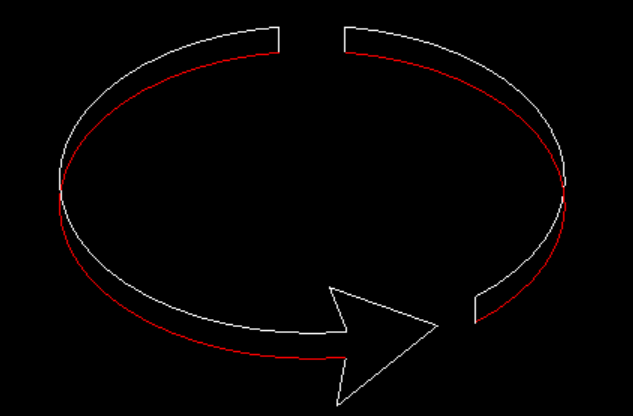

I roughed this out in a couple of minutes using the Ellipse, Line, Copy, Mirror, and Trim commands. Yes, it is not an exact replica of the image you posted, I realize that, but the technique would be exactly the same. Note: The ellipses are the same. I created the one in white first then I copied it to a position lower than itself. I changed the color of the copied ellipse to make it show up better for demonstration purposes.
Edited by John Connor - 22.Oct.2021 at 15:04
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
dery
Senior Member
Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 161
|
Posted: 22.Oct.2021 at 18:41 |
|
How do you draw tip of the arrow so that the direction of the arrow is correct?
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 23.Oct.2021 at 15:05 |
dery wrote:
How do you draw tip of the arrow so that the direction of the arrow is correct? |
Really? It's merely the intersection of a line parallel to the small vertical line to the right and the red ellipse.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
dery
Senior Member
Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 161
|
Posted: 23.Oct.2021 at 18:30 |
|
Can you show me the construction line and it is better if you could show me by an image.
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 23.Oct.2021 at 20:53 |
|
This is just basic AutoCAD 101. No math. No convoluted geometry. The construction line would be parallel to the small vertical line to the right, in the image provided, and long enough so that when you extend the ellipse (temporarily) it will create an intersection with the construction line.
Edited by John Connor - 24.Oct.2021 at 13:29
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
