How to Create Oil Ring in AutoCAD? |
Post Reply
|
Page 12> |
| Author | |
dery
Senior Member
Joined: 31.Jan.2018 Location: United States Using: AutoCAD 2014 Status: Offline Points: 161 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: How to Create Oil Ring in AutoCAD?Posted: 31.Oct.2023 at 10:21 |
|
Can someone show me please how do I create an oil ring in AutoCAD?
Thanks  |
|
 |
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1511 |
Post Options
Thanks(0)
Quote Reply
Posted: 01.Nov.2023 at 07:57 |
|
Hello Dery, it's not complicated :
-1- Do a 2D sketch. -2- Do REGION of each "oil ring" facets in quantity one. -3- EXTRUDE each facet. -4- Duplicate each facet. -5- Verify the connection between the facets. -6- UNION all the facets. -7- Verify the assembly In any case do a copy of each of your 2D and 3D work in ortho mode ( F8 ) at a precise distance ( for example 200 mm ) at each critical time so that you can get back on it.
|
|
|
|
|
dery
Senior Member
Joined: 31.Jan.2018 Location: United States Using: AutoCAD 2014 Status: Offline Points: 161 |
Post Options
Thanks(0)
Quote Reply
Posted: 01.Nov.2023 at 10:26 |
|
I don't understand. Can you show me by image or video?
|
|
|
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1511 |
Post Options
Thanks(0)
Quote Reply
Posted: 01.Nov.2023 at 12:45 |
|
Dery, I have placed in the CAD/BIM Blocks library the AutoCAD file : OIL RING-PJH.dwg
|
|
|
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1511 |
Post Options
Thanks(0)
Quote Reply
Posted: 07.Nov.2023 at 15:41 |
|
So dery, where is your oil ring ???
|
|
|
|
|
dery
Senior Member
Joined: 31.Jan.2018 Location: United States Using: AutoCAD 2014 Status: Offline Points: 161 |
Post Options
Thanks(0)
Quote Reply
Posted: 07.Nov.2023 at 16:51 |
|
Sorry, I have this error message when trying to open the ACAD file from you:
Can you make it so that I can open it in AutoAD 2014? Thanks
|
|
|
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1511 |
Post Options
Thanks(0)
Quote Reply
Posted: 07.Nov.2023 at 17:32 |
|
Hello dery, I have placed it in the CAD/BIM Blocks library in AutoCAD 2013.
It doesn't want to be inserted here.
|
|
|
|
|
dery
Senior Member
Joined: 31.Jan.2018 Location: United States Using: AutoCAD 2014 Status: Offline Points: 161 |
Post Options
Thanks(0)
Quote Reply
Posted: 08.Nov.2023 at 13:44 |
|
OK, thanks. Now I understand how to create oil ring.
|
|
|
|
|
dery
Senior Member
Joined: 31.Jan.2018 Location: United States Using: AutoCAD 2014 Status: Offline Points: 161 |
Post Options
Thanks(0)
Quote Reply
Posted: 08.Nov.2023 at 15:37 |
|

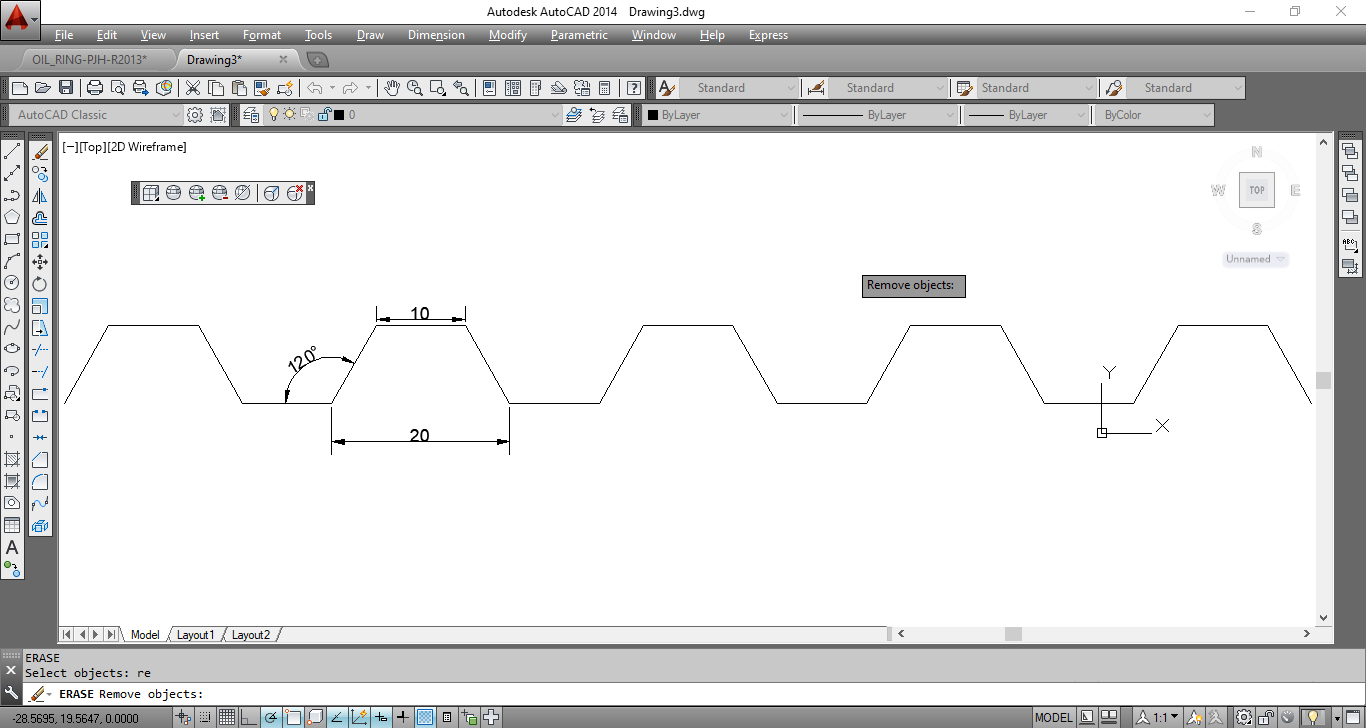

Wait a second, how do you create an oil ring with profile like this?
 |
|
|
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1511 |
Post Options
Thanks(0)
Quote Reply
Posted: 08.Nov.2023 at 17:27 |
|
Hello dery, I will take a look but it's not the way it looks on the first photo and not how oil rings looks.
If you want the 3D model you should give me ALL the other dimensions of that GIANT oil ring. At a first glance I think that I will have to do a twised inclinated part to joint the dimension 10 and 20.
|
|
|
|
