   Hi GuysI am new to autocad and using autocad2016 version.

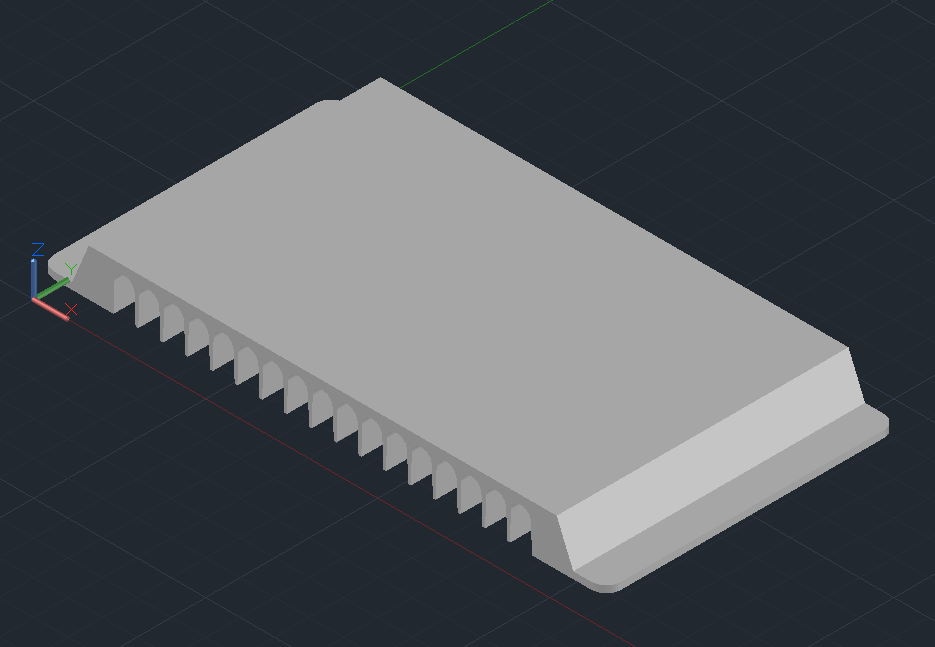

I am creating a HeatSink model in autocad. I have drawn it and one thing is to be added on the fins of Heat Sink that is groove on Fins.
Let me show you what I have done and want I want

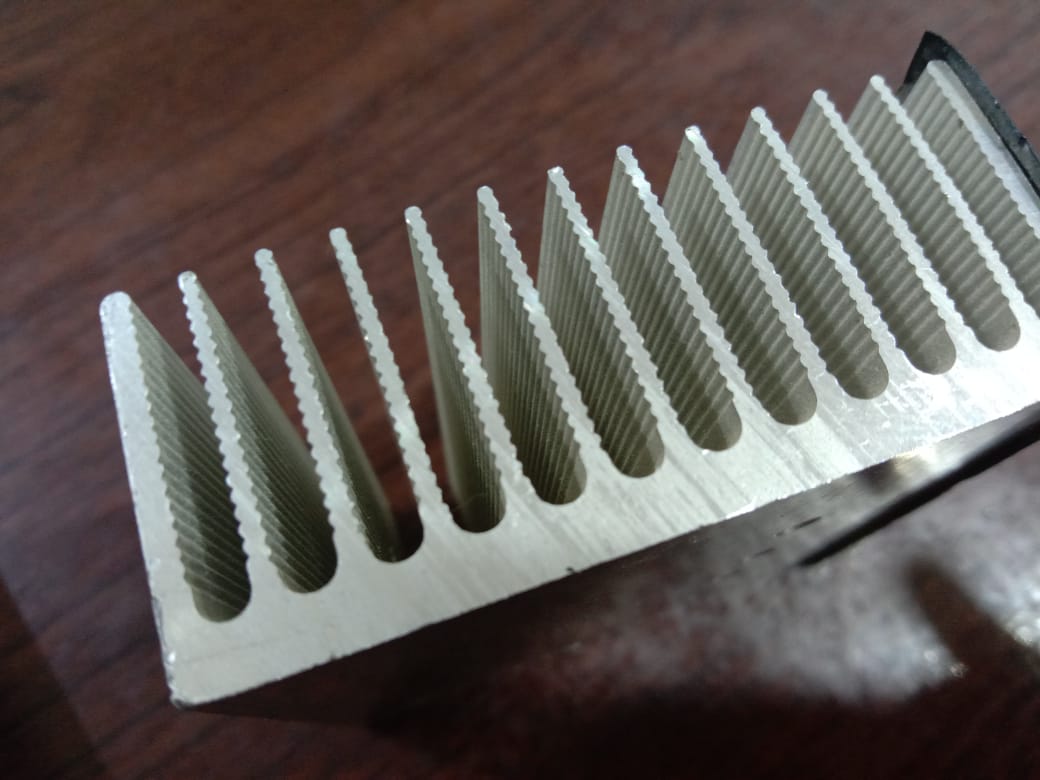

this is what i have done so far and what i want to add is, see the following image and see that on the fins there is a texture. what this is called and how to add this texture

kindly tell me how I can do that

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
abdul hayee Members Profile Send Private Message Find Members Posts Add to Buddy List Newbie Joined: 06.Jan.2024 Location: Pakistan Using: AutoCAD2016 Status: Offline Points: 2	Post Options Post Reply Quote abdul hayee Report Post Thanks(0) Quote Reply Topic: How to add texture/grooves on the fins of HeatSink Posted: 06.Jan.2024 at 07:20
	Hi Guys I am new to autocad and using autocad2016 version. I am creating a HeatSink model in autocad. I have drawn it and one thing is to be added on the fins of Heat Sink that is groove on Fins. Let me show you what I have done and want I want this is what i have done so far and what i want to add is, see the following image and see that on the fins there is a texture. what this is called and how to add this texture kindly tell me how I can do that

philippe JOSEPH Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1493	Post Options Post Reply Quote philippe JOSEPH Report Post Thanks(0) Quote Reply Posted: 06.Jan.2024 at 09:56
	Hello Abdul, if you want to "add" the groves I think that it would rather be a "material removal" instead, that's to say that you will EXTRUDE the groves and then SUBTRACT them of the initial 3D solid. This will work in case of your original fins thinner than the total heigth, otherwise you will have to modelize the groves and then UNION them to the rest. I don't understand why you haven't extruded the final profile directly. In any case always keep each steps of your model at a given distance and with ortho on ( F8 ) so that you can come back if the result is not OK. Note : Texture is an other thing, it's got to see with a "realistic" rendering of your 3D solid and you would have to apply a material to do this. Edited by philippe JOSEPH - 06.Jan.2024 at 10:04
