   I can sometimes make a hatch pattern when I need one, but I have one that is too difficult for me to figure out how to create it from scratch. Incidentally, I'm still using AutoCAD 2011 Lt. Apparently the new AutoCAD versions make it easy to create a hatch pattern, but my version has no such ability. I'm very close to upgrading to the latest version of AutoCAD Lt, but I need a hatch patern before then. Does anyone know of a service or person that could create a hatch patern for me. There are some programs that I have tried but they could not do what I needed. and i don't want to spend a lot of money because I don't often need to make new hatch patterns and I'm going to be getting the the latest AutoCAD Lt soon. Attached is a .dwg of what I need. I included the pattern four time in the drawing to show how the pattern is supposed to repeat. Any help with this would be appreciated.uploads/569326/Porcelain_Pavers_Hatch_Patern.dwg

Author	Message Topic Search Topic Options Post Reply Create New Topic Printable Version Translate Topic
cinci-hal Members Profile Send Private Message Find Members Posts Visit Members Homepage Add to Buddy List Newbie Joined: 24.Jun.2015 Location: United States Using: AutoCAD lt 2011, AuttoDesk VIZ, AutoCAD 2000, ... Status: Offline Points: 2	Post Options Post Reply Quote cinci-hal Report Post Thanks(0) Quote Reply Topic: Difficult Hatch Pattern Posted: 27.Jun.2024 at 20:33
	I can sometimes make a hatch pattern when I need one, but I have one that is too difficult for me to figure out how to create it from scratch. Incidentally, I'm still using AutoCAD 2011 Lt. Apparently the new AutoCAD versions make it easy to create a hatch pattern, but my version has no such ability. I'm very close to upgrading to the latest version of AutoCAD Lt, but I need a hatch patern before then. Does anyone know of a service or person that could create a hatch patern for me. There are some programs that I have tried but they could not do what I needed. and i don't want to spend a lot of money because I don't often need to make new hatch patterns and I'm going to be getting the the latest AutoCAD Lt soon. Attached is a .dwg of what I need. I included the pattern four time in the drawing to show how the pattern is supposed to repeat. Any help with this would be appreciated.uploads/569326/Porcelain_Pavers_Hatch_Patern.dwg

Kent Cooper Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 685	Post Options Post Reply Quote Kent Cooper Report Post Thanks(0) Quote Reply Posted: 01.Jul.2024 at 15:28
	That looks very much [but not exactly] like a "standard" pseudo-random pattern called a "French tiling." I attach a .zip file containing two such patterns I made a while back, including a version that is 1 drawing unit square for the smallest components, to use at a scale of whatever edge length you want for those, and one exactly at the size of yours [8 units square for the smallest components] which you can use at a scale of 1. uploads/353260/TileFrench.zip If that is "too different" from your pattern, I'm sure yours could be defined, but first see whether the French tiling pattern will serve your purposes. Edited by Kent Cooper - 02.Jul.2024 at 14:38

Kent Cooper Members Profile Send Private Message Find Members Posts Add to Buddy List Senior Member Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 685	Post Options Post Reply Quote Kent Cooper Report Post Thanks(0) Quote Reply Posted: 05.Jul.2024 at 15:17

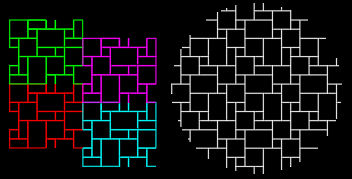

	Yours on the left, TileFrench8 [at a scale of 1] on the right:
