autocad line types |
Post Reply
|
| Author | |
mwdesigns21
Newbie
Joined: 05.Jun.2010 Location: United States Using: cad 2009 Status: Offline Points: 2 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: autocad line typesPosted: 18.Aug.2024 at 02:28 |
|
When I try to create a new linetype with express in 2024.....standard text will work
However when I try to make a linetype using a symbol or subscript the text does not show in the drawing...the line and spacing is there.uploads/118036/Drawing1.dwg
|
|
 |
|
|
Vladimir Michl
Moderator Group
Arkance Systems CZ Joined: 26.Jul.2007 Location: Czech Republic Using: Autodesk software Status: Offline Points: 2098 |
Post Options
Thanks(0)
Quote Reply
Posted: 18.Aug.2024 at 12:42 |
|
Try the LTFly utility (see Download) for better creation of text-based linetypes. You will need to specify the superscript as a unicode character (\\U+nnnn).
|
|
|
Vladimir Michl (moderator)
ARKANCE - https://arkance.world - Autodesk Platinum Partner |
|
|
|
|
Kent Cooper
Senior Member
Joined: 12.Mar.2013 Location: United States Using: AutoCAD2020, 2023 Status: Offline Points: 685 |
Post Options
Thanks(0)
Quote Reply
Posted: 19.Aug.2024 at 15:28 |

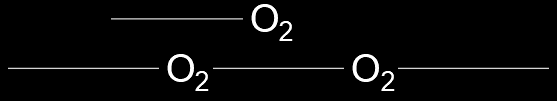

MKLTYPE doesn't accept Mtext [even without internal formatting such as for a subscript], which you could have known from its Express Tools Help description. You can make the O and the 2 separate Text objects [just Explode your Mtext with the subscript], and MKLTYPE can handle their different sizes and vertical positions. Using the components in the upper part of this image [I Exploded the Mtext], it made the linetype of the lower part.  Edited by Kent Cooper - 19.Aug.2024 at 15:31 |
|
|
|
|
toeron
Newbie
Joined: 22.Jul.2013 Location: Netherlands Using: autocad map 2012 Status: Offline Points: 1 |
Post Options
Thanks(0)
Quote Reply
Posted: 20.Aug.2024 at 09:14 |
|
use this code in your .lin file
*O2_LINE, Line with Oxygen symbol O\U+2082 A,1.0,-0.2,["O\U+2082",Standard,S=0.2,R=0.0,X=-0.1,Y=-0.1],-0.2,1.0 |
|
|
|
