    Posted: 07.Feb.2010 at 18:23

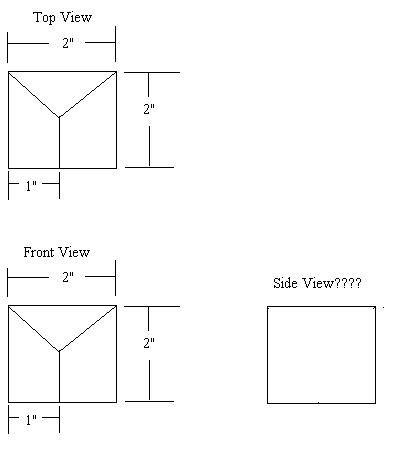

i was asked a question about the given drawing.  What would the side view look like given the top and front view.  (there are no hidden lines but there are lines on top of other lines)



If anyone could help me to figure this out i would appreciate it a lot
Back to Top
CarlB View Drop Down
Senior Member
Senior Member


Joined: 16.Oct.2009
Location: United States
Status: Offline
Points: 321 		Direct Link To This Post Posted: 08.Feb.2010 at 03:06
The 2 views are indicating a valley ("v" shape)with a ridge at the back.
A right side view would show just the hidden line for the valley. It angles down from the top right corner, then hit level at 1" down.
Back to Top
lofty1 View Drop Down
Newbie
Newbie


Joined: 12.Mar.2009
Status: Offline
Points: 8 		Direct Link To This Post Posted: 08.Feb.2010 at 11:53
or the vertical line could be a ridge and the 2 angled lines the hips
Back to Top
lofty1 View Drop Down
Newbie
Newbie


Joined: 12.Mar.2009
Status: Offline
Points: 8 		Direct Link To This Post Posted: 08.Feb.2010 at 11:56
oops sorry, the first poster was correct. I only looked at the top view thinking you wanted the front view. I should really read the question properly
Back to Top
qi0n View Drop Down
Newbie
Newbie


Joined: 07.Feb.2010
Status: Offline
Points: 5 		Direct Link To This Post Posted: 08.Feb.2010 at 18:53
that would work for the given question if it allowed hidden lines.  any ideas on the side view with no hidden lines but there are lines on top of lines
Back to Top
lofty1 View Drop Down
Newbie
Newbie


Joined: 12.Mar.2009
Status: Offline
Points: 8 		Direct Link To This Post Posted: 09.Feb.2010 at 10:08
from looking at the drawings again, the side view would be exactly how you've shown it.
Back to Top
qi0n View Drop Down
Newbie
Newbie


Joined: 07.Feb.2010
Status: Offline
Points: 5 		Direct Link To This Post Posted: 19.Feb.2010 at 02:25
so lofty what your saying is that the side view would look just the same as it is? no lines in it just the boxes lines?
Back to Top
lofty1 View Drop Down
Newbie
Newbie


Joined: 12.Mar.2009
Status: Offline
Points: 8 		Direct Link To This Post Posted: 19.Feb.2010 at 10:29
Correct

My only query on the front view is why there is that small central line running from top to bottom. This really shouldn't be there because on plan it shows a flat face as opposed to one with an angle.

There are a couple of hidden lines but I'm guessing you don't need to show them. They would run from the middle of the left hand line to the centre of the square, then from the centre of the square to the top right hand corner. i.e like where two pitched roofs join at a valley gutter.
Back to Top
qi0n View Drop Down
Newbie
Newbie


Joined: 07.Feb.2010
Status: Offline
Points: 5 		Direct Link To This Post Posted: 19.Feb.2010 at 23:05
yeah i thought the same thing but the guy who gave me the question says there is no hidden lines and he has a part that when i get it right he will show me the part.  ill ask him about it and let you know
Back to Top
Rman View Drop Down
Groupie
Groupie


Joined: 14.Nov.2007
Status: Offline
Points: 45 		Direct Link To This Post Posted: 20.Feb.2010 at 08:25

..

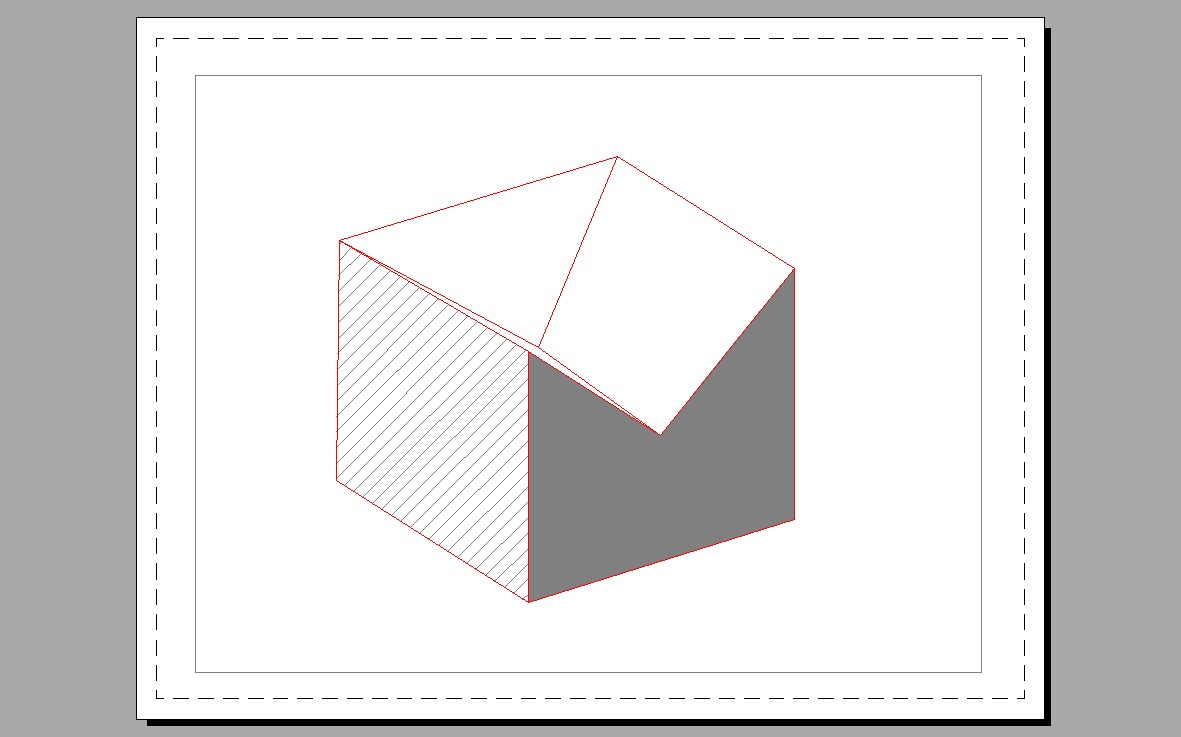

I'll try, how about this?  :)
