Topic ClosedXY GRID

 Post Reply Post Reply
Author
anggidesk73 View Drop Down
Newbie
Newbie


Joined: 20.Jan.2011
Location: Indonesia
Using: AutoCAD 2009
Status: Offline
Points: 2
Direct Link To This Post Topic: XY GRID
    Posted: 20.Jan.2011 at 10:30
Dear...

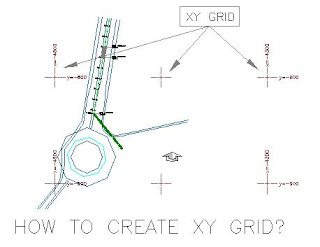

I receive a drawing from project owner as here:




Now, after project Phase I finished we have to submit As Built Drawing. All drawing of as built must meet to owner codes and marks.

How to generate/create xy grid as drawing above?? Or, is there any LISP for that??
Help me...

Thanks....
Sweet regards,
Anggiat Thamrin
Regards...Anggiat Thamrin S
Back to Top
HAWDesigner View Drop Down
Senior Member
Senior Member


Joined: 04.Aug.2008
Location: United States
Using: AutoCAD R14, AutoCAD 2009, AutoCAD 2010
Status: Offline
Points: 310
Direct Link To This Post Posted: 20.Jan.2011 at 17:36
Those aren't standard AutoCAD grids, so either someone created them specially or they may be available in your flavor of AutoCAD - I'm not sure.

I suggest posting this question in the forum that specializes in your flavor of AutoCAD (such as AutoCAD Civil 3D, Map)

Good Luck!!
--
R. Williams
AutoCAD 2010 Certified Professional
<!-- If all else fails hit F1 -->
<<AutoCAD 2009
Back to Top
