 Topic: How to draw an irregular rectangle ??
Posted: 31.Mar.2013 at 16:33 |
Hi all,

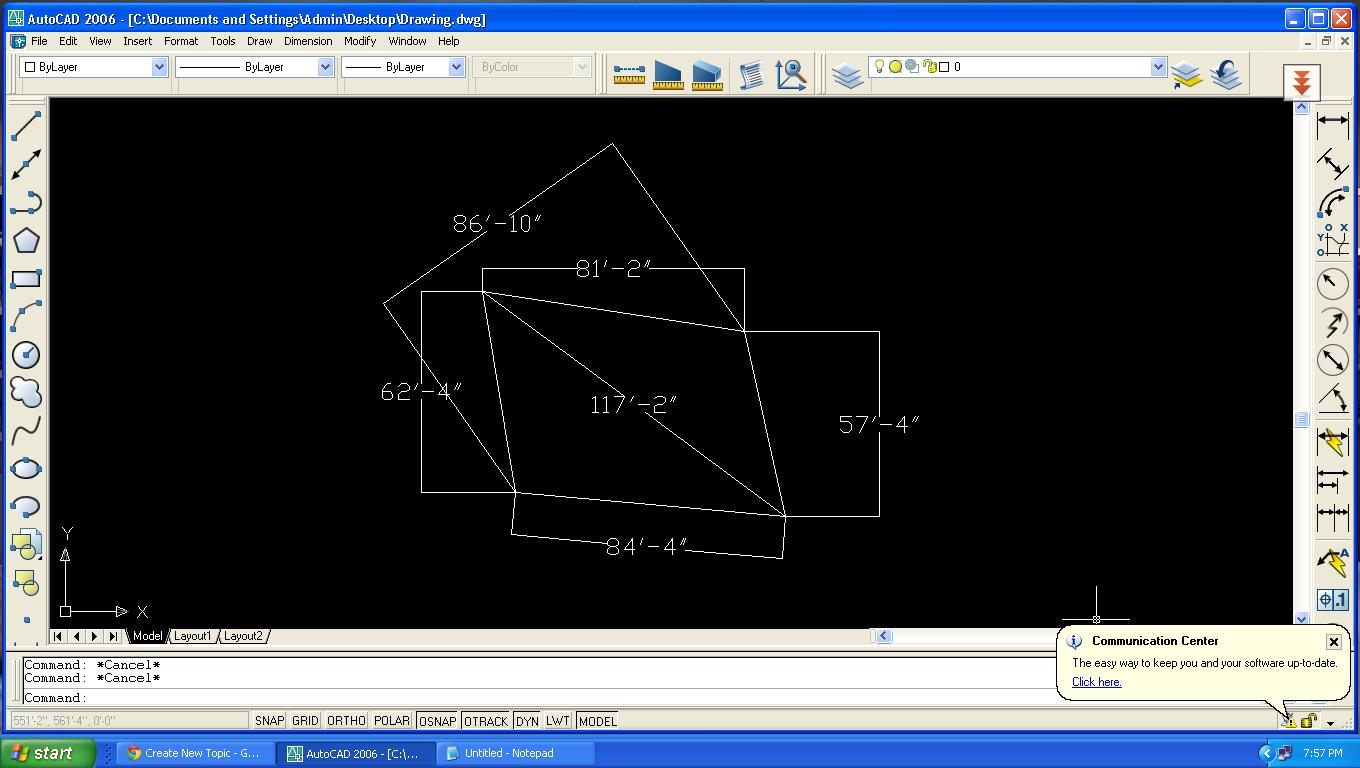

I wish to draw an irregular rectangle. I know the measurement, but where as i dont know the angle. how to draw an irregular rectangle without angles.
please help.
|
 |
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 01.Apr.2013 at 01:01 |
|
Draw the diagonal then use intersecting circles drawn from the endpoints.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
heinsite
Senior Member
Joined: 05.Feb.2009
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 640
|
Posted: 01.Apr.2013 at 06:18 |
|
If these are the only measurements you have then I don't see that you have enough information to draw the object.
Dave.
|
|
Dave Hein, P.E.
Hawaii District Engineer
Kona International Airport
AutoCAD Certified Professional
Autodesk Expert Elite
|
|
heinsite
Senior Member
Joined: 05.Feb.2009
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 640
|
Posted: 01.Apr.2013 at 06:19 |
|
Try it, John. I don't see enough aligned dimensions.
Dave.
|
|
Dave Hein, P.E.
Hawaii District Engineer
Kona International Airport
AutoCAD Certified Professional
Autodesk Expert Elite
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 01.Apr.2013 at 12:00 |
|
I can reproduce the rectangle with one exception. The 86'-10" distance ends up being closer to 86'-3".
What is the source of the distances used?
Why is the rectangle being constructed in this manner? In other words, why no angles?
Edited by John Connor - 01.Apr.2013 at 12:01
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
heinsite
Senior Member
Joined: 05.Feb.2009
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 640
|
Posted: 01.Apr.2013 at 14:23 |
You're a better man than I, John. But I bet it was more work than you bargained for.
Let's not call this a rectangle anymore however, let's call it what it is: a Quadralateral.
Dave.
|
|
Dave Hein, P.E.
Hawaii District Engineer
Kona International Airport
AutoCAD Certified Professional
Autodesk Expert Elite
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 01.Apr.2013 at 18:09 |
|
It took less than 30 seconds.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
CarlB
Senior Member
Joined: 16.Oct.2009
Location: United States
Status: Offline
Points: 321
|
Posted: 01.Apr.2013 at 18:17 |
I agree with Heinsite, difficult or possibly not enough information. Only way to draw it easily is asume alldimensions are aligned, although some clearly appear to be horizontal/vertical. Probably why John's result didn't match the "given".
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 02.Apr.2013 at 11:32 |
|
Let's see...yep, I came closer than either one of you! LoL
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 02.Apr.2013 at 11:58 |
|
lovejeevan: What is the purpose of this exercise?
It's not the sides that are the problem. It's the fact that you cannot get both diagonals to match the given dimensions easily. You can get one or the other to match but you're left with the other diagonal being short.
Maybe the solution requires constructing the rectangle using constraints?
Edited by John Connor - 02.Apr.2013 at 12:15
|
