Lisp create perspective view from a 2D drawing
Post Reply
|
| Author | |
linhoreka
Newbie
Joined: 04.Nov.2010 Location: Vietnam Using: AutoCAD2008 Status: Offline Points: 16 |
 Topic: Lisp create perspective view from a 2D drawingPosted: 01.Sep.2013 at 19:15 |
|
Hi, this lisp is working in 2D only: it generate a perspective view from a selected 2D plan or elevation.
Download Lisp 1. Command: P2D

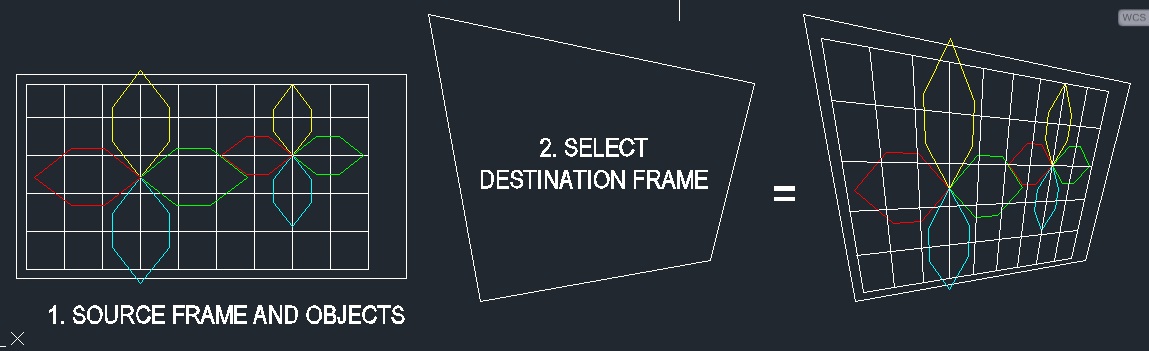

2. Select the source frame (trapezoid polyline) of the plan or elevation 3. Select drawing objects in that source plan or elevation 4. Select destination frame >>> a new perspective drawing would be draw arcordingly (see image and example drawing) 5. Repeat step 4 until you select none It is working only with straight lines, straight polylines and points. Pretty useful when you want to take a leap up from your 2D, for but donot have time to create a 3D model.  |
|
|
http://7cad.wordpress.com - AutoCAD lisps and VBA shared
|
|
 |
|
