 Topic: Tower Crane Block not inserting correctly
Posted: 18.Dec.2013 at 17:12 |
Hello AutoCAD users I have a strange issue. I can open my existing Tower Crane drawing and there everything is like it should be, the blocks, layers but when I try to insert that same drawing into another drawings some things are gone. If I double click on it to open/edit that one block it still shows some of it and some objects are not there. I have looked through my Layer manager to verify all my layers are on and they are and they are. Still nothing "Has anyone ever come across this problem? Please tell me how to fix it. I am using AutoCAD 2013. HELP! Brent
|
 |
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 18.Dec.2013 at 18:16 |
|
Was the drawing originally done in AutoCAD?
Upload a copy; maybe someone here will be kind enough to check it out and tell you what they encountered.
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
brentatterton@h
Groupie
Joined: 16.Aug.2012
Location: United States
Using: AutoCAD 9, 12, 2000, 2004 all LT versions,
Status: Offline
Points: 20
|
Posted: 18.Dec.2013 at 18:30 |
|
I'm not sure how to upload the file. Let me know please
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1493
|
Posted: 19.Dec.2013 at 07:23 |

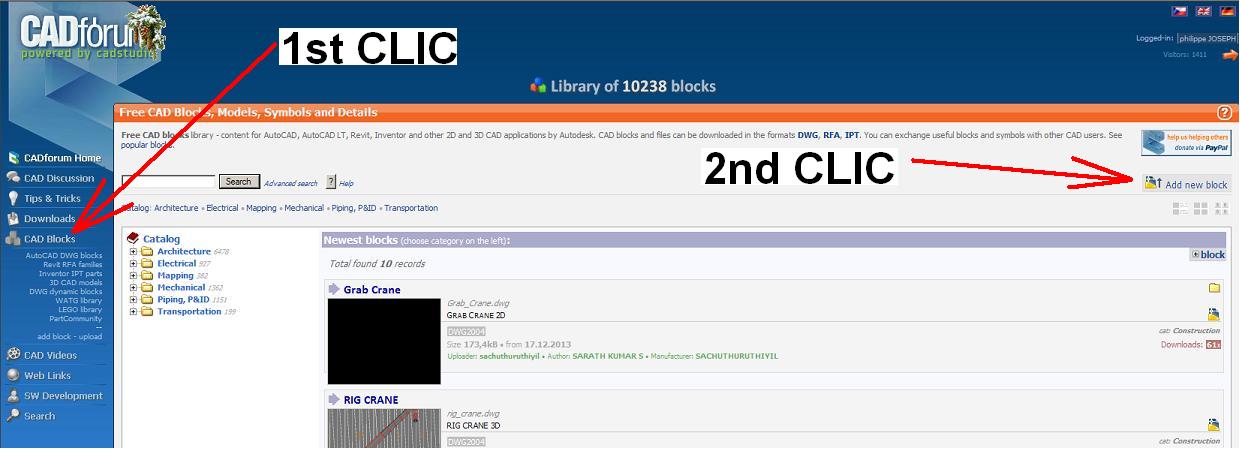

Hello brentatterton, here is how to upload a new block ( file ).
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 19.Dec.2013 at 12:06 |
|
You can upload and attach both DWG and ZIP files to a post as long as they do not exceed 500KB in size by first clicking on the Full Reply Editor icon above the Message Box. At the next screen you click on the File Upload icon. Think you can handle that or do you need further instructions?
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
purti
Newbie
Joined: 14.Dec.2013
Location: India
Using: AutoCAD 2D, 3D 2014
Status: Offline
Points: 8
|
Posted: 23.Dec.2013 at 07:21 |
hey you should use purge command 'pu' before copy this item first use this to remove all dialog box click then pase in another file.. purti
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 23.Dec.2013 at 11:50 |
|
purti: How is the Purge command going to make objects that appear to be missing reappear? What would make you even suggest that as a solution?
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
purti
Newbie
Joined: 14.Dec.2013
Location: India
Using: AutoCAD 2D, 3D 2014
Status: Offline
Points: 8
|
Posted: 23.Dec.2013 at 12:25 |
|
Hellow, Dear purge command is use to close then unnecessary layer in file and which layers use in file will go in another drg. for this command you can reduce the load of file and also object will shown in another file, i also use this in layout drawings many time where plot size of layout in km's and file become too heavy and help of that you can reduce the load and also object will show in another drawing.......
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 23.Dec.2013 at 12:28 |
|
The PURGE command does NOT make objects that are not appearing in the Block Editor suddenly reappear. The PURGE command is used to delete UNREFERENCED entities like blocks, layers, linetype definitions, etc. By deleting unreferenced entities the drawing file size should decrease. One can also reduce file size by running the OVERKILL command to delete overlapping and duplicate lines. Users should also consider running the AUDIT command to correct any errors to the drawing database.
By the way, the command line version of PURGE should be used. This requires the insertion of a dash < - > before the command like this: -purge. Recommended procedure is to purge Regapps first then rerun the command and do a purge All.
Edited by John Connor - 23.Dec.2013 at 16:11
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
John Connor
Senior Member
Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175
|
Posted: 23.Dec.2013 at 16:07 |
|
brent: Did you figure out what the problem was? Will you be uploading the DWG file or not?
|
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance." <<AutoCAD 2015>>
|
|
