Display line weights in Inventor drawings.

A - answer Similarly to AutoCAD, also in Inventor you can enable or disable displaying true line weights on the screen (influences e.g. zooming).

In the Options dialog (Application options), on the Drawing tab, in the "Display line weights" pane, click on the button "Settings" and choose the option "Display line weights by range" (4 predefined line widths), or "Display true line weights".

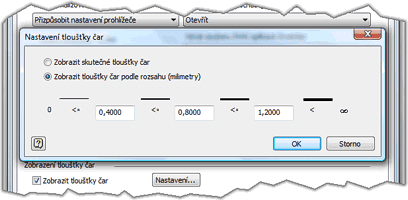

Linewight (CZ version shown)
