	How to find net surface area (sans holes) of an unfolded sheetmetal part in Fusion 360?

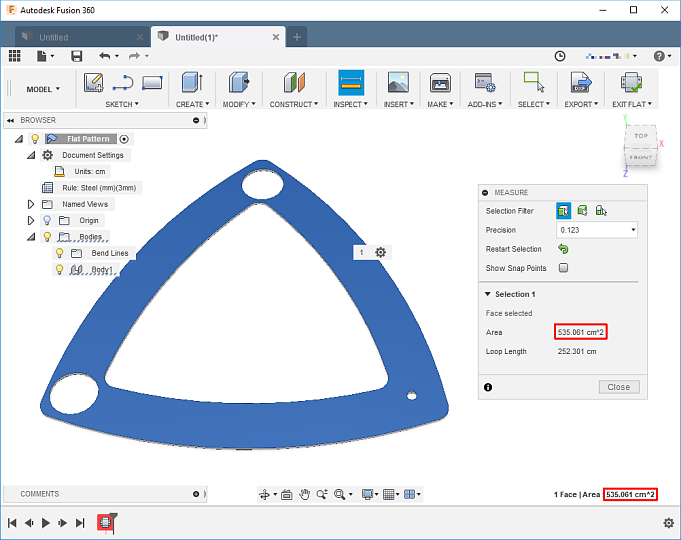

	To display a net area of the surface of the unfolded sheetmetal part in Autodesk Fusion 360, just click on the face (one side) of the unfold. Its area is displayed in the bottom right corner. Another option is the function Measure (Inspect > Measure, the key `I`) - click on the unfold to display its area and loop length.
