CAD tip CAD tip # 10916:

Question

CAD
 %  platform  category
A
You can project the unfolded shape of a folded sheetmetal part to a sketch, without redoing the flat pattern or fold procedure -- using the command "Project Flat Pattern".

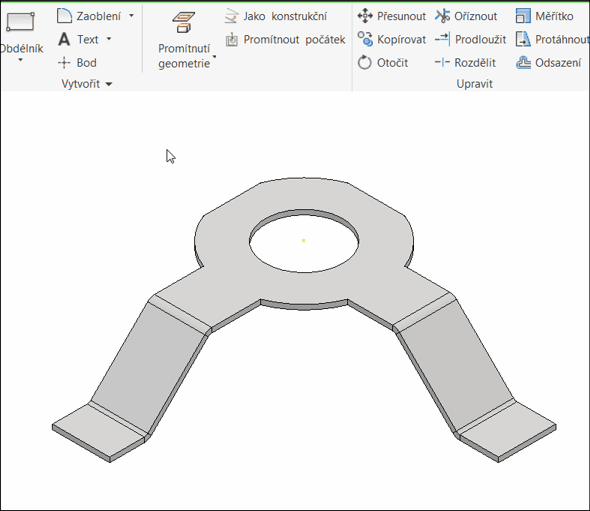

See an example:

Inventor
100% *CAD
24.5.2016    8161×
