How to show color print (sketch) also on the sheetmetal flat pattern?

Pictures and other types of sketches on sheetmetal faces are not transferred to flat pattern unfolds by default.

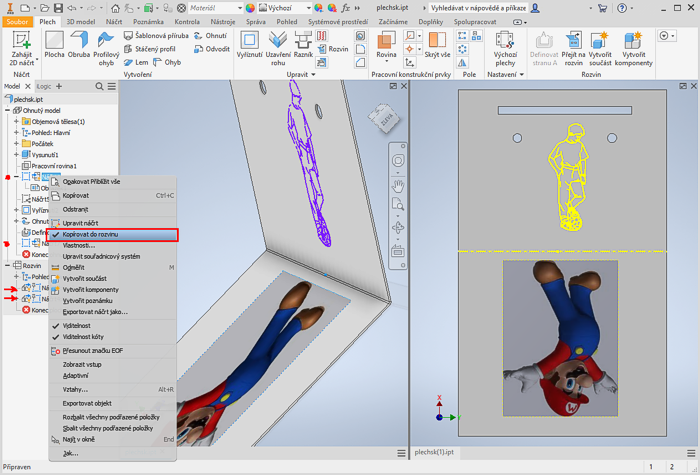

But if you need to project your raster (images) or vector (e.g. from 2D DWGs) paintings also to the flat pattern unfolds (in the original positions on the model), use the function "Copy to flat pattern", available in the context menu (right mouse button click) at the given sketch in the browser tree of the folded model. This will copy the sketch to the flat pattern tree and will display it also in the unfolded model:
