Modified fillet along obstacles - sharp edges.

A - answer If you need to modify (flow) fillet of a body along a sharp edge, use the option "Roll along sharp edges" in extended options of the Fillet dialog.

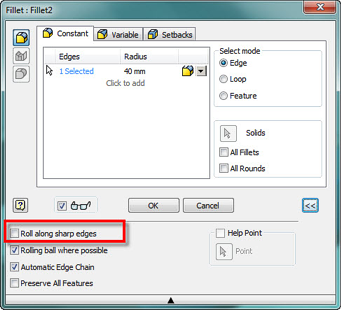

Compare filleting without and with this option:

Zaobleni, fillet

100% *  CAD
12.5.2014    3812×
