CAD Forum discussion (EN) : create solid model https://www.cadforum.cz/forum_en/ Wed, 22 Apr 2026 01:00:06 +0000 Tue, 04 Oct 2016 16:23:40 +0000 http://blogs.law.harvard.edu/tech/rss Web Wiz Forums 12.04 360 https://www.cadforum.cz/forum_en/RSS_post_feed.asp?TID=12028 <![CDATA[CAD Forum discussion (EN)]]> https://www.cadforum.cz/forum_en/forum_images/web_wiz_forums.png https://www.cadforum.cz/forum_en/ <![CDATA[create solid model : Yes, it does match. Here&#039;s...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32709&title=create-solid-model#32709 Author: John Connor
Subject: 12028
Posted: 04.Oct.2016 at 16:23

Yes, it does match.  Here's proof.




Edited by John Connor - 04.Oct.2016 at 18:24]]> Tue, 04 Oct 2016 16:23:40 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32709&title=create-solid-model#32709 <![CDATA[create solid model : oh.. I didnt want to make you...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32705&title=create-solid-model#32705 Author: f-yazdand
Subject: 12028
Posted: 04.Oct.2016 at 09:43

oh.. I didnt want to make you angry at all, thank you very much was a great help and I learned new commands. ]]> Tue, 04 Oct 2016 09:43:37 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32705&title=create-solid-model#32705 <![CDATA[create solid model : I outlined the steps I used to...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32704&title=create-solid-model#32704 Author: John Connor
Subject: 12028
Posted: 03.Oct.2016 at 23:23

I outlined the steps I used to create the shape in the form of a solid.  You'll just have to keep at it until you get it right.

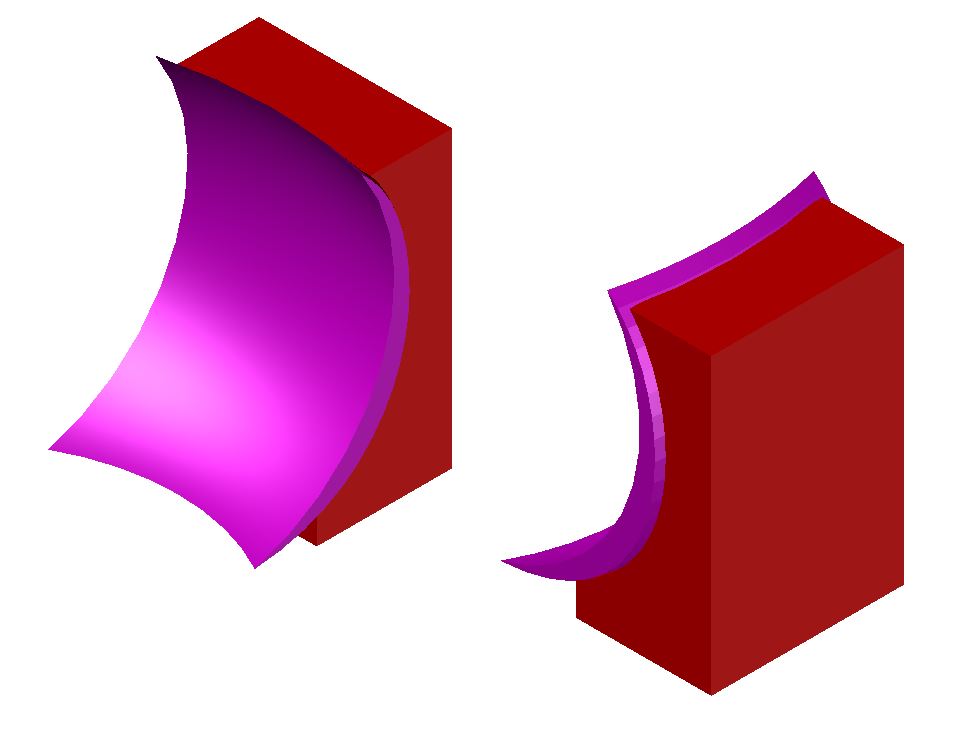

So as it turns out it wasn't the shape of the crescent you were talking about but how it lines up with the geometry directly behind it.  My guess from the image you provided is that you located it incorrectly.  BTW...you can attach images to your posts directly.  There is no need to zip the image file.  It is totally unnecessary.

Once you have the crescent located correctly portions of the geometry behind it will have to be removed.  You cannot use the Trim command and you cannot use the Slice command.  Copy both pieces off to one side and subtract the crescent from the piece behind it.  Next, use the Separate command to break the main piece (the one you want to keep) from the portion of the geometry that is of no use.  Once you run that command and the pieces are separated delete the one(s) you don't need.  Now swap what remains with its original.  At this point the back of the crescent and the front of the geometry behind it should fit like a glove.

In the future, when you are commenting about something another user has provided you, free of charge and after much work, be a little bit more clear in your explanation of what you think may be "different" than what you expected otherwise someone may just get the wrong idea.  Got it?


Edited by John Connor - 04.Oct.2016 at 19:12]]> Mon, 03 Oct 2016 23:23:35 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32704&title=create-solid-model#32704 <![CDATA[create solid model : Thank you but not matched ...u...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32703&title=create-solid-model#32703 Author: f-yazdand
Subject: 12028
Posted: 03.Oct.2016 at 20:53

Thank you but not matched ...
uploads/298250/not_matching.zip
]]> Mon, 03 Oct 2016 20:53:06 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32703&title=create-solid-model#32703 <![CDATA[create solid model : Where are you located exactly?I&#039;ve...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32700&title=create-solid-model#32700 Author: John Connor
Subject: 12028
Posted: 03.Oct.2016 at 17:56

Where are you located exactly?

I've attached a copy of the crescent created as a solid.  Have fun.

uploads/165260/yazdand_crescent_solid.dwg


Edited by John Connor - 03.Oct.2016 at 20:03]]> Mon, 03 Oct 2016 17:56:03 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32700&title=create-solid-model#32700 <![CDATA[create solid model : uploads/298250/loft_step.zip Hi...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32699&title=create-solid-model#32699 Author: f-yazdand
Subject: 12028
Posted: 03.Oct.2016 at 17:45

uploads/298250/loft_step.zip

Hi Jhon,
so to make sure i am following the right steps I created an image from the shapes Im trying to loft
1- I have the crescent as Cross sections which  I select both of them
2- I choose Guides and then select the curve ( the one in the bottom of the crescent)
but loft not giving me any shape ....it fails...

thank you
]]> Mon, 03 Oct 2016 17:45:58 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32699&title=create-solid-model#32699 <![CDATA[create solid model : Still getting a &#034;server not...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32694&title=create-solid-model#32694 Author: John Connor
Subject: 12028
Posted: 03.Oct.2016 at 11:44

Still getting a "server not found" error when clicking on the link you provided.  What's up with that?
]]> Mon, 03 Oct 2016 11:44:36 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32694&title=create-solid-model#32694 <![CDATA[create solid model : I am not on my CAD computer and...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32693&title=create-solid-model#32693 Author: John Connor
Subject: 12028
Posted: 02.Oct.2016 at 00:43

I am not on my CAD computer and won't be able to look at your drawing until tomorrow (Sunday).

Update: I tried the link above twice this morning but it did not work.


Edited by John Connor - 02.Oct.2016 at 13:56]]> Sun, 02 Oct 2016 00:43:48 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32693&title=create-solid-model#32693 <![CDATA[create solid model : Hi Jhon, I do appreciate if you...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32690&title=create-solid-model#32690 Author: f-yazdand
Subject: 12028
Posted: 01.Oct.2016 at 18:48

Hi Jhon, I do appreciate if you take look in my model since i follow your instruction but not getting solid.
thank you http://https://www.dropbox.com/s/y7ef2n1o465z4x0/model%20%20soliddwg.zip?dl=0

attached is the link to the file.
]]> Sat, 01 Oct 2016 18:48:14 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32690&title=create-solid-model#32690 <![CDATA[create solid model : You have to use the GUIDES option...]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32688&title=create-solid-model#32688 Author: John Connor
Subject: 12028
Posted: 01.Oct.2016 at 12:42

You have to use the GUIDES option when lofting the pull the model into its proper shape.  In this case it would be at least one guide at the bottom or the top of the crescent.
]]> Sat, 01 Oct 2016 12:42:23 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=12028&PID=32688&title=create-solid-model#32688
