Subject: URGENT help needed!!!
Posted: 24.Oct.2026 at 09:11

Thanks for the reply.

I solved it, i guess :)
my solution was to plot the table to PDF and then in PDF Xchanger to export it as an excel file. FYI
]]> Sat, 24 Oct 2026 09:11:22 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14817&PID=40414&title=urgent-help-needed#40414 <![CDATA[AutoCAD : URGENT help needed!!!]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14817&PID=40412&title=urgent-help-needed#40412 Author: philippe JOSEPH
Subject: URGENT help needed!!!
Posted: 21.Oct.2026 at 12:36

Hello hakiyev, I suppose that it has to do with dataextraction but I dont use it.]]> Wed, 21 Oct 2026 12:36:39 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14817&PID=40412&title=urgent-help-needed#40412 <![CDATA[AutoCAD : URGENT help needed!!!]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14817&PID=40411&title=urgent-help-needed#40411 Author: hakiyev
Subject: URGENT help needed!!!
Posted: 21.Oct.2026 at 10:26

Hi guys,
I have a dwg drawing where tables a drawn using lines. Does anyone know how can I export them as an excel table? Or is it even possible?
]]> Wed, 21 Oct 2026 10:26:24 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14817&PID=40411&title=urgent-help-needed#40411 <![CDATA[AutoCAD : Loft issue]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40409&title=loft-issue#40409 Author: 2JimB
Subject: Loft issue
Posted: 07.Oct.2026 at 15:53

philippe JOSEPH
Very much appreciate you taking the time to have a look.

Your analysis was correct - what I'm trying to do.

I'm sorry you can't open the file ... essentially it contained the two closed sections small one and then the other larger which ends up a thrie beam (three high rolls and two valleys).
I've run out of time and had to compromise the presentation as I wanted it all 3d.

There's gotta be a way. I'll have crack utilizing your suggestion.
And persevere...
if I get something I can consider success I'll post it here might help someone else. ]]> Wed, 07 Oct 2026 15:53:19 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40409&title=loft-issue#40409 <![CDATA[AutoCAD : Loft issue]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40408&title=loft-issue#40408 Author: philippe JOSEPH
Subject: Loft issue
Posted: 07.Oct.2026 at 13:41

Hello 2jimB, what I see is a road guard rail, correct ?
B001 should be like a rounded W.
B012 should be like a double rounded W.
B007 should your transition beam between those elements B001 and B012.
On the left side of B007 there is already the Ronded W but begining at approx. 1/3 of the 2 m transition it will become the double rounded W.
I'm afraid that AutoCAD will not LOFT easily a 3D surface between those 2 W shapes.
You will have to simplify the 3 D surfaces or do the first 1/3 like a loft ( or SWEEP ) between a little W and a bigger W and then LOFT an other double W shape to the big final double W.
I will try on my side but I'm not able to open the AutoCAD file Loft_--.dwg now.

Eventually, see the related tip N° 7267 accessible here under.

How to make a 3D solid from a series of profile outlines



Edited by philippe JOSEPH - 07.Oct.2026 at 13:46]]> Wed, 07 Oct 2026 13:41:34 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40408&title=loft-issue#40408 <![CDATA[AutoCAD : Loft issue]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40407&title=loft-issue#40407 Author: 2JimB
Subject: Loft issue
Posted: 07.Oct.2026 at 10:35

I'm trying to loft two closed but different shapes.
Been trying all day I cant do.
Its for a tender I want to present a concept.

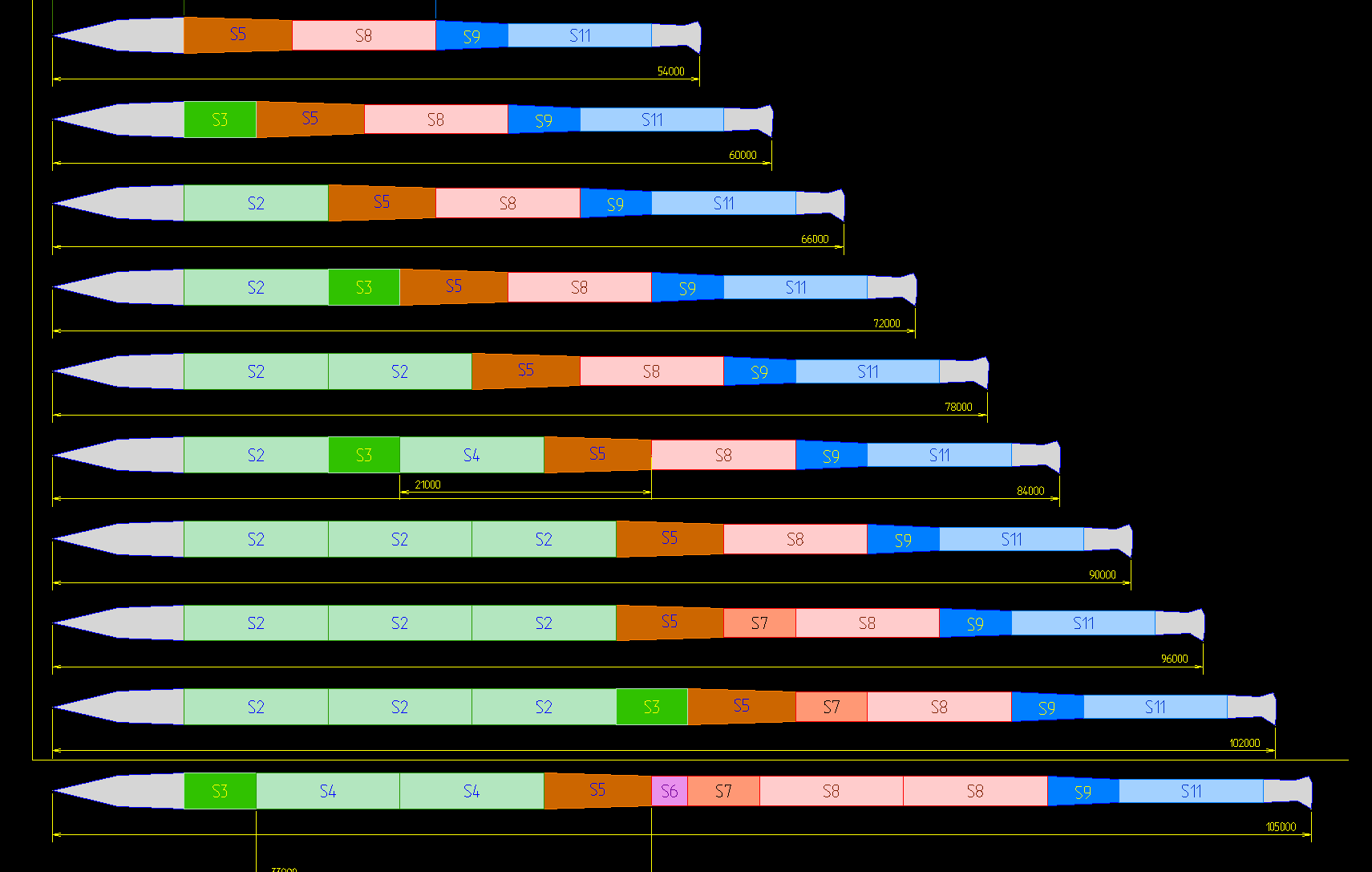

I've attached a pic of the transition beam 2mts long between the two elements.
The attached pic is from gov site but they will not provide cads to prevent tampering of their drawings.
The cad is attached.uploads/213831/Loft_--.dwg
Anyone be able to help be very much appreciated.
give e some advice be very much appreciated. ]]> Wed, 07 Oct 2026 10:35:30 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14815&PID=40407&title=loft-issue#40407 <![CDATA[-CAD Forum- (read-only) : A new era for CADforum]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40405&title=a-new-era-for-cadforum#40405 Author: Vladimir Michl
Subject: A new era for CADforum
Posted: 01.Oct.2026 at 19:34

I might pop in here from time to time. Future administration is beyond my control.]]> Thu, 01 Oct 2026 19:34:33 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40405&title=a-new-era-for-cadforum#40405 <![CDATA[-CAD Forum- (read-only) : A new era for CADforum]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40404&title=a-new-era-for-cadforum#40404 Author: philippe JOSEPH
Subject: A new era for CADforum
Posted: 01.Oct.2026 at 16:03

Hello Webmaster, I ( we ) hope you a very happy retirement and have interesting activities such as sport, travel, hobbies, etc...
Will you keep an eye on the site ?
Is there already a new Webmaster ?


Edited by philippe JOSEPH - 01.Oct.2026 at 16:04]]> Thu, 01 Oct 2026 16:03:44 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40404&title=a-new-era-for-cadforum#40404 <![CDATA[-CAD Forum- (read-only) : A new era for CADforum]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40403&title=a-new-era-for-cadforum#40403 Author: Vladimir Michl
Subject: A new era for CADforum
Posted: 01.Oct.2026 at 14:19

As you may know, my position at ARKANCE EMEA has been terminated, and with it, my roles as a developer, publisher, and moderator at CADforum.cz have also come to an end. Thank you for your trust and for 26 inspiring years of collaboration here on the CADfórum website. I look forward to future interactions with the global CAD communities.

More at https://lnkd.in/p/d8EpHMaE

]]> Thu, 01 Oct 2026 14:19:15 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14813&PID=40403&title=a-new-era-for-cadforum#40403 <![CDATA[AutoCAD : Amazing Lisp for drawing stairs]]> https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14812&PID=40402&title=amazing-lisp-for-drawing-stairs#40402 Author: nameci
Subject: Amazing Lisp for drawing stairs
Posted: 28.Sep.2026 at 20:01

StairSec.lsp


Although this is a very good lisp routine, I can not take the credit for it, below is the author and where I got it from.

If anyone wants to try it, load the lisp, enter stairsec at the command line, and follow the prompts.

Enjoy,

;;;CADALYST 07/08 www.cadalyst.com/code
;;;Tip 2302: StairSec.TXT    Draw Stair Sections (c) 2008 Jay Thomas

;;======================================================================
;; StairSec.lsp Stair Section - Calculate and Draw Routine
;; (c) 4/23/2007, 11/21/2007, 03/12/08
;; Version 1.2
;; JL Thomas
;;======================================================================
;; Requires: StairSec.dcl and StairSec.slb]]> Mon, 28 Sep 2026 20:01:28 +0000 https://www.cadforum.cz/forum_en/forum_posts.asp?TID=14812&PID=40402&title=amazing-lisp-for-drawing-stairs#40402
