Topic ClosedLIEBHERR 3D LTM 1400-7.1 TF-ADAPTER

 Post Reply Post Reply
Author
philippe JOSEPH View Drop Down
Senior Member
Senior Member


Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1459
Direct Link To This Post Topic: LIEBHERR 3D LTM 1400-7.1 TF-ADAPTER
    Posted: 04.Feb.2023 at 09:32
Hello, I need the 3D block of a TF-ADAPTER for a LIEBHERR crane LTM 1400-7.1.

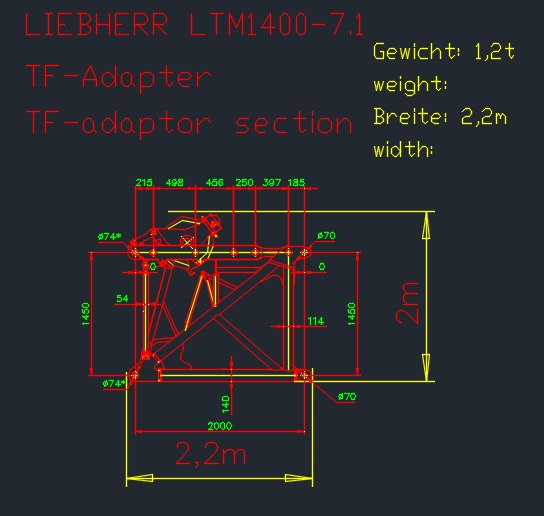

You can eventually see the 2D of it in the official file : 987328008-02.dwg
Thanks in advance.

Back to Top
mvrcad View Drop Down
Newbie
Newbie


Joined: 05.Sep.2011
Location: Australia
Using: AutoCAD, Inventor, Revit
Status: Offline
Points: 16
Direct Link To This Post Posted: 14.Feb.2023 at 02:45
Hi there
I am a crane draftsman and lift planner, I don't think i have this in 3d, however have you tried asking Liebherr?
they have a portal with cad drawings
from previous experience, a company that owns a Liebherr crane gets a password to the portal that has all the cad drawings in it

Back to Top
philippe JOSEPH View Drop Down
Senior Member
Senior Member


Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1459
Direct Link To This Post Posted: 14.Feb.2023 at 08:46
Hello mvrcad, I have already downloaded the free version of the 2D and 3D official files from Liebherr but my company hasn't planned to buy the full version of Liebherr LICCON.
We are not crane users but an engineering company and site works procedure "makers" in the field of penstocks, dam and river gates, conception and drawing of special elements like special pipes, special 3D elbows, "standard" and special offset cones, bifurcations, etc..

I have re-built usable blocks of nearly all the 4 boom+jib configurations and it's a lot of work but I miss that particular element.

Off course I have made a 3D extruded from the 2D of the TF-ADAPTER but it wolud be better to have it directly and correct.


Edited by philippe JOSEPH - 14.Feb.2023 at 08:48
Back to Top
philippe JOSEPH View Drop Down
Senior Member
Senior Member


Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1459
Direct Link To This Post Posted: 14.Feb.2023 at 17:30
Hello mvrcad, if you are interesseted in 2D mobile cranes search in the CAD/BIM Blocks library here in the site with my name or with :
DEMAG , LIEBHERR , GROVE , MANITOU , KRUPP , AH9530 , KALMAR , PPM , TADANO.
If you are interested in 3D mobile cranes give me an e-mail adress for me to send big files.


Edited by philippe JOSEPH - 14.Feb.2023 at 17:38
Back to Top
mvrcad View Drop Down
Newbie
Newbie


Joined: 05.Sep.2011
Location: Australia
Using: AutoCAD, Inventor, Revit
Status: Offline
Points: 16
Direct Link To This Post Posted: 15.Feb.2023 at 00:39
Hi Phillipe Joseph
I will send you a message with my contact details.
it would be good to have another contact that is interested in crane cad blocks.
if you ever need anything i will see what i can do to help.
Marcus

mvrcad at yahoo dot com dot au


Edited by mvrcad - 15.Feb.2023 at 00:40
Back to Top
leo.gdz View Drop Down
Newbie
Newbie


Joined: 20.Jan.2022
Location: Mexico
Using: Autocad, Navisworks, recap
Status: Offline
Points: 2
Direct Link To This Post Posted: 02.Mar.2023 at 22:31
Hi Phillipe how are you? Could you please share me the 2D or 3D block of Liebherr LTM 1400-7.1 TN configuration? If you hace it, of course. Thank you!
Back to Top
philippe JOSEPH View Drop Down
Senior Member
Senior Member


Joined: 14.Mar.2011
Location: France
Using: AutoCAD Mechanical 2017
Status: Offline
Points: 1459
Direct Link To This Post Posted: 03.Mar.2023 at 08:27
Hello leo.gdz, yes I can share them with you.
Give me an E mail adress because the files are too big to be placed here in the site.
I would send them with "grosfichier.com".
Please tell me if AutoCAD 2018 is OK for you ?



Edited by philippe JOSEPH - 03.Mar.2023 at 08:28
Back to Top
leo.gdz View Drop Down
Newbie
Newbie


Joined: 20.Jan.2022
Location: Mexico
Using: Autocad, Navisworks, recap
Status: Offline
Points: 2
Direct Link To This Post Posted: 03.Mar.2023 at 08:30
gdz.leonardo@gmail.com, thanks!
Back to Top
