How to Create Text with Color Background?

 Post Reply Post Reply
Author
dery View Drop Down
Groupie
Groupie


Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 99
Post Options Post Options   Thanks (0) Thanks(0)   Quote dery Quote  Post ReplyReply Direct Link To This Post Topic: How to Create Text with Color Background?
    Posted: 30.Nov.2023 at 05:48
Can someone tell me please how to create a white text with color background like pic below in AutoCAD 2014?


Back to Top
Vladimir Michl View Drop Down
Moderator Group
Moderator Group

Arkance Systems CZ

Joined: 26.Jul.2007
Location: Czech Republic
Using: Autodesk software
Status: Offline
Points: 2015
Post Options Post Options   Thanks (0) Thanks(0)   Quote Vladimir Michl Quote  Post ReplyReply Direct Link To This Post Posted: 02.Dec.2023 at 13:18
Just make your text color "white" or "light gray" and put some color geometry "under" it, either literally "under" (using Z-coordinate) or with DrawOrder - e.g. a solid hatched rectangle, 2D shape, wipeout mask or similar.
Vladimir Michl (moderator)
Arkance Systems - arkance-systems.cz - Autodesk reseller
Back to Top
dery View Drop Down
Groupie
Groupie


Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 99
Post Options Post Options   Thanks (0) Thanks(0)   Quote dery Quote  Post ReplyReply Direct Link To This Post Posted: 02.Dec.2023 at 15:51
How do you change the color of the text to white?

This is what I've done:

1. Make a rectangle
2. Make the text inside the rectangle.
3. Apply hatch (solid) inside the rectangle.

And this is the result:
How to make the white background like above pic to same color as the purple background?


Edited by dery - 03.Dec.2023 at 07:14
Back to Top
Vladimir Michl View Drop Down
Moderator Group
Moderator Group

Arkance Systems CZ

Joined: 26.Jul.2007
Location: Czech Republic
Using: Autodesk software
Status: Offline
Points: 2015
Post Options Post Options   Thanks (0) Thanks(0)   Quote Vladimir Michl Quote  Post ReplyReply Direct Link To This Post Posted: 03.Dec.2023 at 09:31

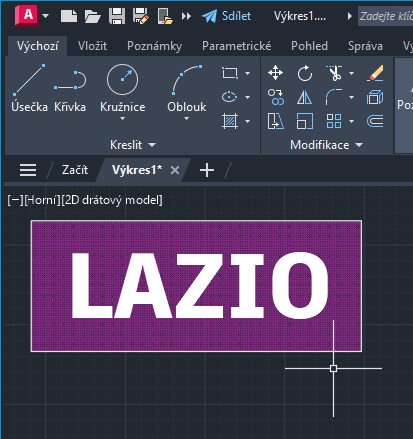

Done using the same workflow you described (point order: 1,3,2):



Do not apply any "masks" to the Text/Mtext if you create the rectangular geometry by yourself.

Or use the Mask option for the text and set the mask color to purple (e.g. in the Properties, Ctrl+1) but don't create the rectangle/hatch manually.


Edited by Vladimir Michl - 03.Dec.2023 at 09:32
Vladimir Michl (moderator)
Arkance Systems - arkance-systems.cz - Autodesk reseller
Back to Top
dery View Drop Down
Groupie
Groupie


Joined: 31.Jan.2018
Location: United States
Using: AutoCAD 2014
Status: Offline
Points: 99
Post Options Post Options   Thanks (0) Thanks(0)   Quote dery Quote  Post ReplyReply Direct Link To This Post Posted: 03.Dec.2023 at 13:17
OK, now it works.

The order is:

1. Create a rectangle with the desired size/dimension.
2. Apply hatch (solid) inside the rectangle.
3. Change the color of the hatch to the desired color.
4. Create text inside the hatched rectangle.
5. Change the color of the text to white.
6. Done.



Thanks for the help.



Edited by dery - 03.Dec.2023 at 16:16
Back to Top
