3D CAD to "form" a sketch or body into curved surf

 Post Reply Post Reply
Author
kipkirol View Drop Down
Newbie
Newbie


Joined: 22.Apr.2014
Location: United States
Using: AutoCAD 2013
Status: Offline
Points: 2
Post Options Post Options   Thanks (0) Thanks(0)   Quote kipkirol Quote  Post ReplyReply Direct Link To This Post Topic: 3D CAD to "form" a sketch or body into curved surf
    Posted: 10.Oct.2019 at 17:14
Hello,

I am looking for suggestions as to what software will be able to "bend" or "form" either a 2D sketch or or extruded body onto the curved surface of a body.

Here is an example -

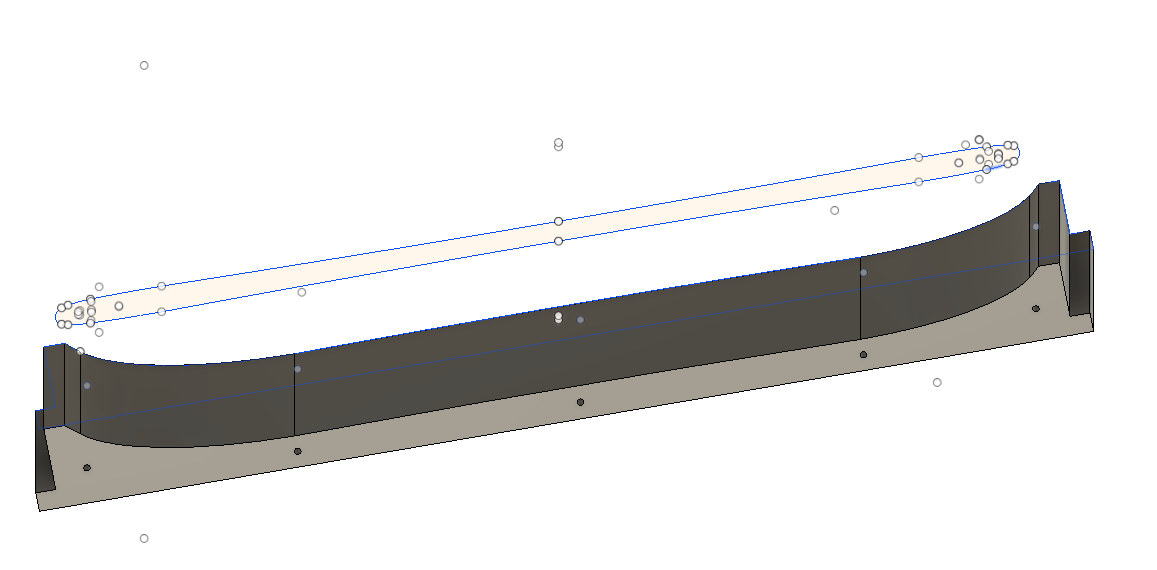

Sample

I would like to "form" the sketch into the curvature of the body in the image.   As if in real world the body was a solid object and the sketch was printed on paper and I could just lay it on the surface.  This is what I hope to achieve.

Right now I have AutoCAD and Fusion360.  I cant use either of these programs to get the desired outcome.

I would prefer to stick within the Autodesk Universe as I am most familiar there, but am open to a suggestion of any software which will do the trick.   Can you bend a sketch with Inventor?  With Solidworks?

Thanks in advance.
Back to Top
scj.schulz View Drop Down
Groupie
Groupie


Joined: 27.Dec.2009
Location: Germany
Status: Offline
Points: 30
Post Options Post Options   Thanks (0) Thanks(0)   Quote scj.schulz Quote  Post ReplyReply Direct Link To This Post Posted: 27.Oct.2019 at 15:01
Hello,
can you please post the real drawing (DWG) in 3D here?
Regards
Jochen
www.black-cad.de
Back to Top
