How to show dimension tolerance in a different color?

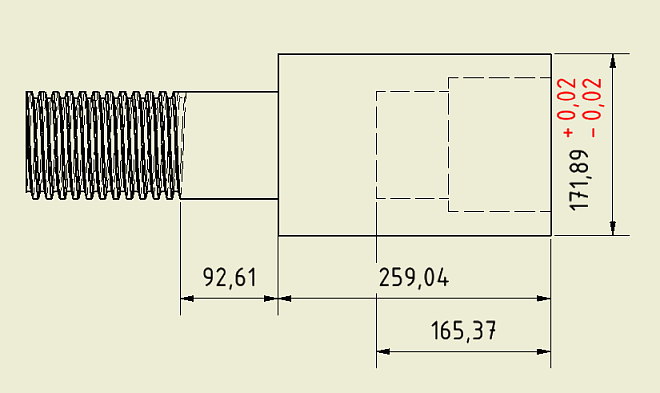

A - answer If you want to display the dimension tolerance value in a difference color, in italics, in a different text size (smaller/larger) or in a different font, use a different text style for the tolerance section.

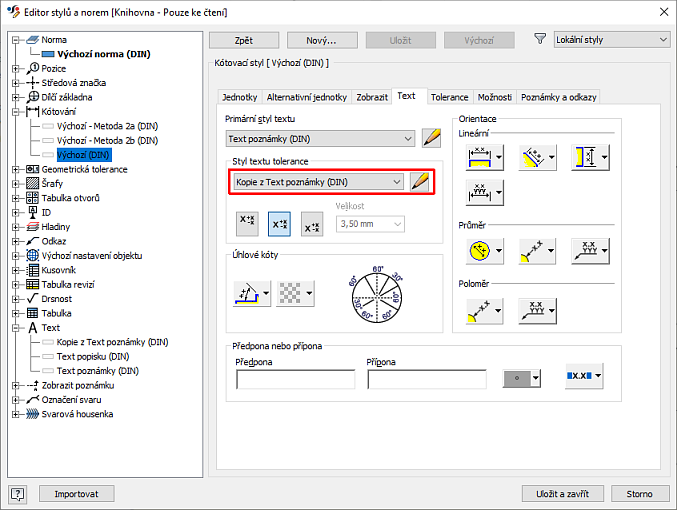

For the dimension style you are using, set a separate "Tolerance text style" on the Text tab in the Style Editor (Manage > Styles and standards > Style Editor). In this style, change the color or another text attribute.
