How to construct a 2D spiral shape in Inventor?

A - answer You can either use the Spiral function directly, which is hidden in the 3D sketch - 3D Sketch > Drawing > Helix Curve > Spiral (a 2D sketch shape is created).

Or you can use the Equation Curve. From the mathematical definition of a spiral you can get an expression for the function 3D Sketch > Drawing > Equation Curve - e.g. for 2 turns, in the Cartesian system:

t min: 0   t max: 720

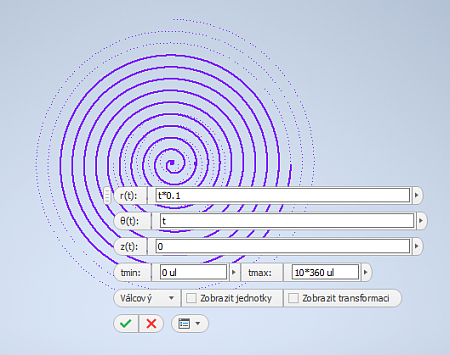

An even simpler and more logical expression (equation) would be in Cylindrical space:

t min: 0ul   t max: 720ul
