3D Solid Model (DWG) for Davit Manhole Cover |
Post Reply
|
| Author | |
zoranob
Newbie
Joined: 11.Aug.2026 Location: Serbia Using: AutoCAD2008 Status: Offline Points: 2 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: 3D Solid Model (DWG) for Davit Manhole CoverPosted: 11.Aug.2026 at 17:32 |
|
Hello community, I am working on a workshop/production drawing for a vessel and I need a functional 3D CAD model (preferably a .dwg) of a Davit-Arm Manhole Cover mechanism with Cover conforming to DIN 28124-4 and DIN 28124-3. Specifically Type H, d2 = 670 mm.Does anyone would be willing to share? Thanks Zoran  |
|
 |
|
|
philippe JOSEPH
Senior Member
Joined: 14.Mar.2011 Location: France Using: AutoCAD Mechanical 2017 Status: Offline Points: 1526 |
Post Options
Thanks(0)
Quote Reply
Posted: 12.Aug.2026 at 06:48 |
|

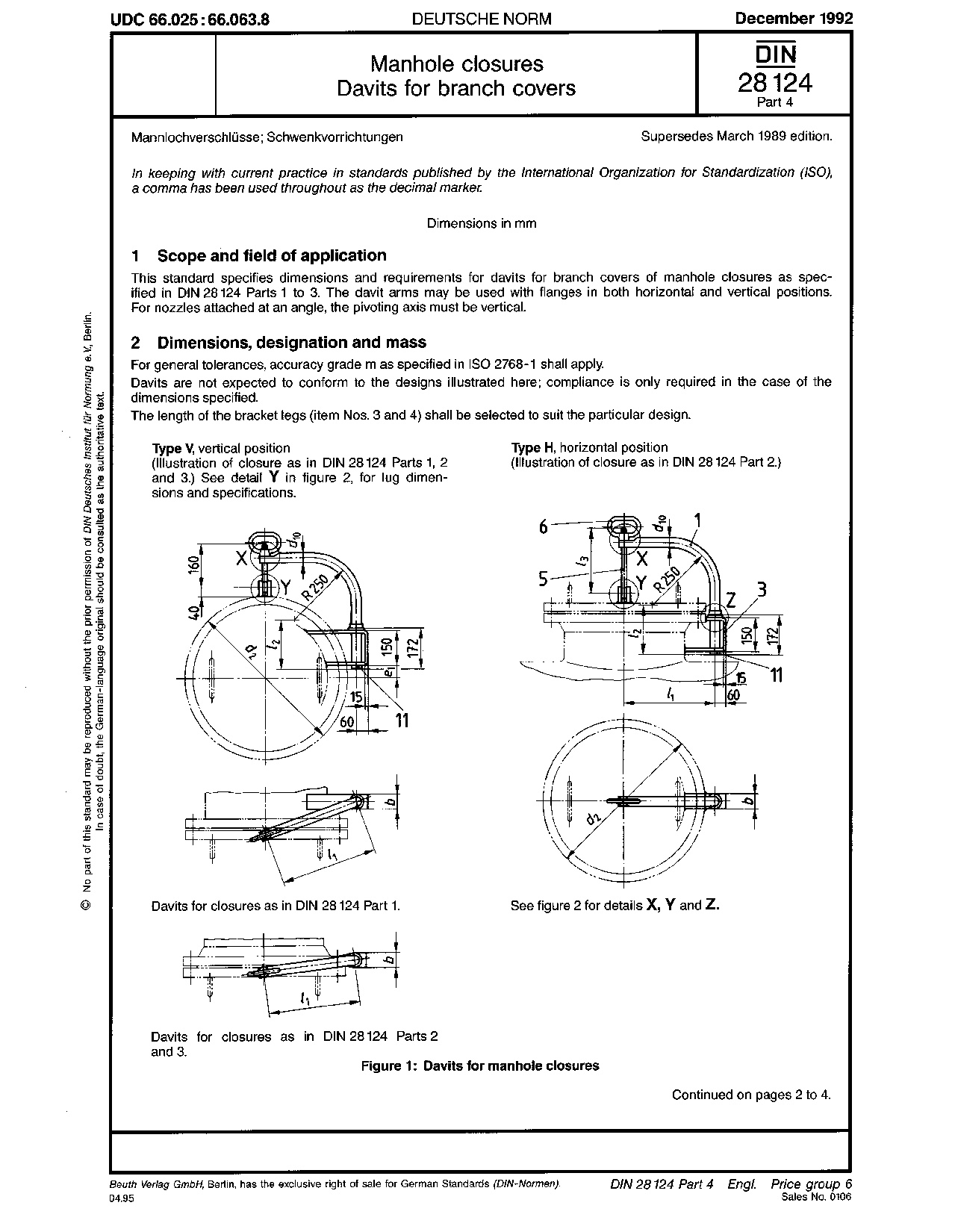

Hello zoranob, I can see that the model that you want H for horizontal is not complicated but some dimensions are not included in that page 1 of 4 like the dimensions b, d10, l1, l2, l3, details X, Y, Z, etc...
Those dimensions should indicated in the rest of the norm. These are not complicated 3D solids to elaborate.
Edited by philippe JOSEPH - 12.Aug.2026 at 14:18 |
|
|
|
