Move dimension text in AutoCAD context menu.

In newer AutoCAD versions, some users are missing the "Move dim text" function (text alone, with leader) previously available on the right-click menu at a selected dimension.

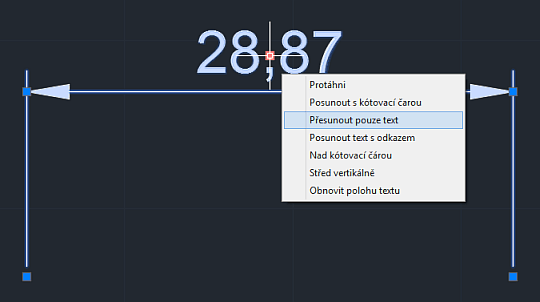

This functions is now accessible through multi-functional grips on dimension objects - just hover your cursor on a dimension text grip and choose the requested Move operation in the grip menu:

If you insist on the original functionality in the contect-menu, add the missing functions to this menu with the AutoCAD CUI command - by dragging from the commands list to the tree Shortcut Menus > Dimension Objects Menu:

You can lookup and use the commands:

move with leader
move with dim line
move text alone
home text
centered
above dim line
