Dynamic block to follow line or polyline path |
Post Reply
|
| Author | |
M07
Newbie
Joined: Yesterday Location: Mauritius Status: Offline Points: 2 |
 Post Options
 Thanks(0)
 Quote Reply
 Topic: Dynamic block to follow line or polyline pathPosted: Yesterday at 04:01 |
|
Hello everyone, I need your help.
I am a plumbing draughtsman, and I use dynamic block pipes that I can stretch or resize. I also use various fittings like elbows, tees, etc. I want to know if there is a way to use a lisp or command to insert my predefined dynamic block so that it follows a line or polyline route previously drawn, similar to how it's done in Revit. I am using the full version of AutoCAD 2026 for my 2D work. Can someone please enlighten me |
|
 |
|
|
Vladimir Michl
Moderator Group
Arkance Systems CZ Joined: 26.Jul.2007 Location: Czech Republic Using: Autodesk software Status: Offline Points: 2173 |
Post Options
Thanks(0)
Quote Reply
Posted: Yesterday at 07:49 |
|
A single block (just align) or an array following the polyline path?

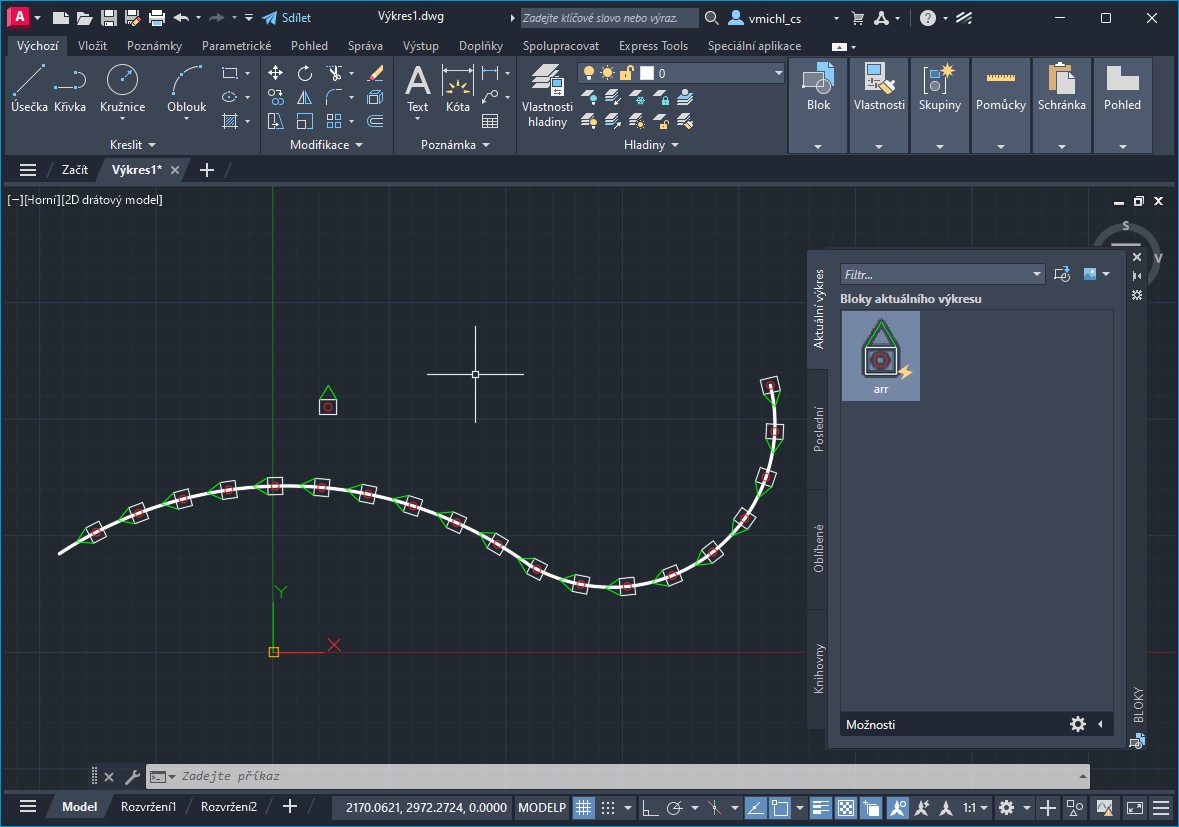

The automatic alignment is a part of the dynamic blocks parameters. See e.g.: https://www.cadforum.cz/catalog_en/block.asp?blk=3220 And for the array, you can use https://www.cadforum.cz/en/display-complex-linetypes-on-3d-curves-in-plain-autocad-tip14665 See e.g.:  Edited by Vladimir Michl - Yesterday at 07:52 |
|
|
Vladimir Michl (moderator)
ARKANCE - https://arkance.world - Autodesk Platinum Partner |
|
|
|
