Topic ClosedNon-linear gradient
 Post Reply Post Reply
Author
  Topic Search Topic Search  Topic Options Topic Options
GerroffMe View Drop Down
Newbie
Newbie


Joined: 03.Feb.2014
Location: United Kingdom
Using: AutoCAD Map 3D 2011
Status: Offline
Points: 8 		Direct Link To This Post Topic: Non-linear gradient
    Posted: 03.Feb.2014 at 11:46
Hi all,

I am trying to recreate a .dwg version of a logo for a company called RWE. Their logo has a gradient in it, but it does not appear to be a linear transition from dark to light. I have tried using the gradient/hatch feature but it has not given the desired results.

Does anyone have any recommendations how I can achieve an exact match for the gradient?

Here is the logo I am trying to recreate:
Back to Top
Vladimir Michl View Drop Down
Moderator Group
Moderator Group

Arkance Systems CZ

Joined: 26.Jul.2007
Location: Czech Republic
Using: Autodesk software
Status: Offline
Points: 2104 		Direct Link To This Post Posted: 03.Feb.2014 at 13:06
Just pick the two "extreme" colors - e.g. Color 152 and White and use the GR_LINEAR gradient with 90° angle.
Vladimir Michl (moderator)
ARKANCE - https://arkance.world - Autodesk Platinum Partner
Back to Top
GerroffMe View Drop Down
Newbie
Newbie


Joined: 03.Feb.2014
Location: United Kingdom
Using: AutoCAD Map 3D 2011
Status: Offline
Points: 8 		Direct Link To This Post Posted: 03.Feb.2014 at 13:13
GR_LINEAR gives a linear gradient, however I am looking for a non-linear one, i.e. a gradient that is logarithmic that starts off dark, gets suddenly lighter and then from the middle point starts getting lighter slower and slower.
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 685 		Direct Link To This Post Posted: 04.Feb.2014 at 15:14

Their logos are .BMP files, which is one of the file types supported in AutoCAD's IMAGEATTACH command, so you can just insert one that way into an AutoCAD drawing.
Back to Top
GerroffMe View Drop Down
Newbie
Newbie


Joined: 03.Feb.2014
Location: United Kingdom
Using: AutoCAD Map 3D 2011
Status: Offline
Points: 8 		Direct Link To This Post Posted: 04.Feb.2014 at 15:16
Would you be able to elaborate a bit on the process, I am not familiar with that command.
Back to Top
GerroffMe View Drop Down
Newbie
Newbie


Joined: 03.Feb.2014
Location: United Kingdom
Using: AutoCAD Map 3D 2011
Status: Offline
Points: 8 		Direct Link To This Post Posted: 04.Feb.2014 at 15:21
Oh actually I misunderstood you, I have already attached the image, as I am tracing it. I cannot use the original image for the gradient because I need it to be compatible with other pieces of software, therefore it all needs to recreated purely using cad and not the original image.
Back to Top
Kent Cooper View Drop Down
Senior Member
Senior Member


Joined: 12.Mar.2013
Location: United States
Using: AutoCAD2020, 2023
Status: Offline
Points: 685 		Direct Link To This Post Posted: 04.Feb.2014 at 20:30

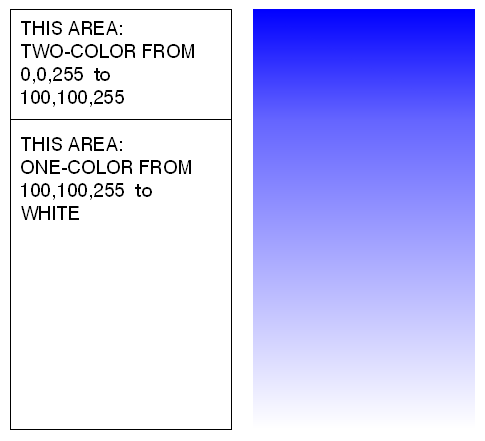

How about an approach like this?  You can vary the proportions between the two areas, or use more than two areas if that gets you the look you want.  Just make sure the "end" color of one gradient is the same as the "start" color of the next one.

Back to Top
GerroffMe View Drop Down
Newbie
Newbie


Joined: 03.Feb.2014
Location: United Kingdom
Using: AutoCAD Map 3D 2011
Status: Offline
Points: 8 		Direct Link To This Post Posted: 05.Feb.2014 at 10:13
Cheers Kent, I did approach it like that and it worked great. I was hoping there would be easier/quicker way, but this way although a bit time consuming did work well.

Cheers for your response.
Back to Top
John Connor View Drop Down
Senior Member
Senior Member


Joined: 01.Feb.2011
Location: United States
Using: AutoCAD 2018
Status: Offline
Points: 7175 		Direct Link To This Post Posted: 05.Feb.2014 at 12:54
Brilliant solution Mr. Cooper!  I'll have to make note of it.
"Humans have a strength that cannot be measured. This is John Connor. If you are reading this, you are the resistance."

<<AutoCAD 2015>>
Back to Top
