FEM - graphical representation of simulation results in missing.

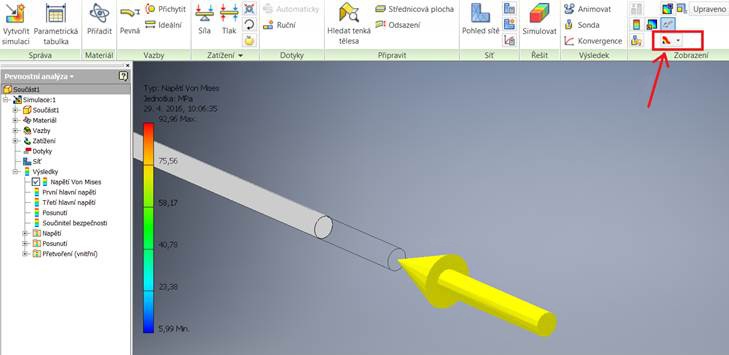

A - answer After you complete the FEM simulation calculation in Inventor, the graphical (color) representation of the results is not displayed on the model - despite you have enabled model shading.

Possible solutions:

  1. Check that your graphics card driver is certified for Inventor

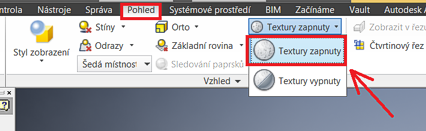

  2. Exit the simulation and check if you have textures enabled on the Display tab:

Inventor
100% *  CAD
29.4.2016    3388×
