Using the Pantone or RAL colors (palette) for your models in Fusion 360.

A - answer The Appearance Editor in Autodesk Fusion 360 offers color selection by the standard Pantone color palette. You can choose hues from the palettes PANTONE+ Solid Coated-V3, PANTONE+ Solid Uncoated-V3, PANTONE+ Pastels & Neons Coated, PANTONE+ Pastels & Neons Uncoated, PANTONE+ Metallics Coated, PANTONE+ Premium Metallics Coated, PANTONE FHI Cotton TCX, PANTONE FHI Cotton TCX-210 Colors and PANTONE FHI Paper TPG.

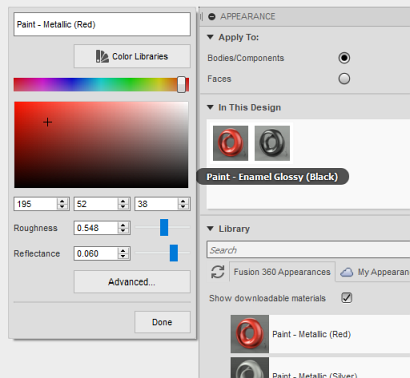

Press "a" to invoke the dialog (palette) APPEARANCE, drag the required (initial) appearance type to the panel "In This Design" or create a fresh copy and then double-click on it (or right-click > Edit). Similarly you can get to appearances from the dialog MATERIALS.

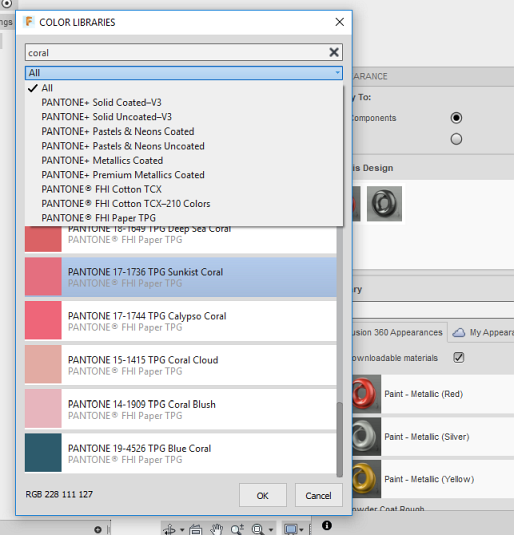

In this dialog, click the button "Color Libraries" and search or browse the requested color hue from the listed colors in the selected PANTONE palette. Confirm by OK to assign the color to the given appearance.

Colour libraries

You can also extend your Fusion 360 to use RAL, BS, AS and NCS Color Libraries by downloading the RALcolours ZIP file from Download, unzipping it to the C:\Users\[username]\AppData\Local\Autodesk\Common\Material Library\20081401\slib\resource\PantoneColors folder and restarting Fusion:

RAL Colours

Native RAL palettes are already in the wishlist on IdeaStation
